In the field of precision machining, choosing the right size end mill is critical to achieving desired production results. This post seeks to make clear misunderstandings about general end mill sizes by describing their uses in different machining situations for engineers and machinists alike. With knowledge of dimension, material, and coating alternatives, among others, experts can optimize efficiency and improve surface finishing quality while also prolonging tool durability. Be it dealing with fine points of an elaborate part or carrying out regular milling operations, this information will act as a complete guide when picking the appropriate cutter for every job undertaken.
Why Knowing End Mill Sizes Matters in Machining
Understanding the Role of Diameter and Flute Length in Milling Operations
The rate of material removal, the finish of the machined surface, and ultimately, the efficiency of the machining operation are highly dependent on the diameter of an end mill. Although larger diameters enable more aggressive material removal, they may not be suitable for finishing operations or machining intricate details. In contrast, smaller diameters are best used to achieve high-quality surface finishes and machine fine details, even though this leads to a slower rate of removing materials.
Similarly, the depth of cut that can be achieved by an end mill, as well as overall tool stability during machining, is influenced by its flute length. While long-fluted end mills can make deep cuts in a single pass, they may also deflect more which could affect surface finish and dimensional accuracy. On the other hand, short-flute lengths provide better stability and hence are preferred for precision demanding tasks.
Selecting the Right Size for Material Removal and Finish
When choosing the size of an end mill, one must consider both the diameter and flute length in relation to the workpiece material and desired outcome. In tougher materials during roughing applications, it may be best to use a larger diameter and shorter flute length so as to remove more material faster while keeping the tool stable. When finishing or machining soft materials, on the other hand, a smaller diameter with longer flutes can give necessary surface finishes and details without removing too much material or bending tools.
Impact of End Mill Size on Tool Life and Machine Efficiency
Its tool life and how efficient the machining process is are greatly affected by the size of an end mill. Before they can be replaced, bigger end mills can tolerate more wearing hence extending the life of a tool. However, they may require more power to operate; thus, in some setups, machine efficiency might be limited. On the other hand, small end mills wear out quickly due to frequent use in achieving higher accuracy as well as finer finishes, which means that they need to be replaced more often than not; this can affect overall machining effectiveness and lead to higher costs of tools.
To sum up, one needs to choose an appropriate endmill, considering factors such as material removal rate (MRR), surface finish (SF), tool life (TL), and machine utilization ratio (MUR). The relationship between these aspects should, therefore, be understood based on diameter and flute length selection for better decision making, leading to optimal operations during the machining process.
Exploring the Different Types of Common End Mills
The Versatility of Square End and Ball Nose End Mills
Two of the most versatile machining tools are square-end mills and ball-nose-end mills, which are used for different purposes depending on their unique geometries. Square end mills have a flat end that is perfect for making sharp, square cuts and generating clean, straight edges in many materials. They work well in slotting, profiling or roughing applications due to their high precision and efficiency.
On the contrary, 3D contouring and creating smooth complex surfaces can be achieved using ball nose end mills that have a rounded end. The ability of these cutters to produce accurate cuts on intricate features makes them common among mold-making industries as well as automotive and aerospace sectors where finishing operations require excellent surface finish quality.
Specialized Applications for Corner Radius and Neck End Mills
The machine operates with corner radius end mills and neck end mills to solve specific difficulties. Round corners of corner radius end mills are made to increase the durability of the tool and reduce chipping. They can therefore be used for roughing as well as finishing in harder materials where this design feature permits higher feed rates and longer life of a tool. They are also versatile enough to handle slots, pockets and complex contours among other applications.
Neck end mills have a section (neck) with a reduced diameter between the cutting head and shank. This design enables it to work deeply into pockets while machining profiles intricately within confined areas without interference from shoulders of tools. Besides, the small size at its neck minimizes deflection risk thereby enhancing accuracy as well as surface finish quality for machined parts.
How the Helix Angle Affects the Milling Process
Throughout the milling process, an end mill’s helix angle determines cutting efficiency, tool life, and finish type. Between 40° and 60° is advisable for a smoother cut on aluminum and other soft materials. This reduces forces applied to workpieces, thereby minimizing heat generation while keeping off chips from sticking onto tools. Such an inclination suits operations with high surface finish demands as well as those aimed at extending tool life.
On the contrary, about 30° of low helix angles provide aggressive cuts suitable for steels or other hard materials. It enhances rigidity of tools together with chip evacuation hence lowering chances for chips being recut which may lead to failure of tools. The selection process should take into account workpiece material properties, desired surfaces finishes among other cutting needs thus making it one of the most critical parameters when choosing end mills for optimal machining processes.
Materials and Coatings: Enhancing End Mill Performance
The Benefit of Carbide End Mills over HSS
Carbide end mills are much better in many ways than their high-speed steel (HSS) counterparts during machining because of carbide’s material properties as a mixture of tungsten carbide and binder metal. Here are the main benefits:
- Increased Hardness and Wear Resistance: They have higher hardness which ensures longer tool life as well as consistent performance even under high speeds and temperatures.
- Better Cutting Speeds: The increased hardness grants them the capability to allow for faster cutting speeds, thus improving productivity while reducing cycle time.
- Improved Finish Quality: Carbide end mills have rigidity and sharpness that produce better surface finish on machined parts.
- Versatility: Although HSS may be tougher than carbide end mills in some specific applications, they are still more versatile across different materials, such as hard-to-machine metals and composites.
Choosing Between Coated vs. Uncoated End Mills
Whether to use coated or uncoated end mills for a given machining process depends on the nature of the operation, the material being worked with, and the desired outcome. Here are some things to keep in mind:
Type of Material: Hard materials like stainless steel or titanium are usually machined using coated end mills because the coating (e.g., TiAlN, TiCN, or AlTiN) reduces wear and increases tool life.
Machining Operation: If an operation generates lots of heat, then additional heat resistance can be provided through coating these mills.
Cost-effectiveness: While they might have higher initial costs than their uncoated counterparts, over time coated ones may still save money by lasting longer and performing better.
Surface Finish: For certain materials, an uncoated mill could produce a finer surface finish due to potential flaking off of coatings.
When to Opt for 4 Flute End Mills with Coolant Channels
Four-end mills that have coolant passages are a good choice in certain situations:
- High-speed machining: A number of flutes gives more cutting edges, which allows higher feed rates and increases productivity.
- Chips removal: Channels for coolants helps to eliminate chips better thereby reducing chances of chip re-welding as well as tool failure especially within enclosed pockets or deep cavities.
- Cooling down: Supplying cooling directly to cutting surfaces reduces heat build-up, thereby extending the life of tools and possibly improving the surface finish of parts.
- Material type: These types of end mills are particularly useful when working with materials that produce long stringy chips easily or those that get distorted due to heat.
To optimize operations, minimize downtime, and achieve better finishes on parts, these aspects should be considered while selecting an appropriate end mill.
Standard vs. Custom End Mill Sizes
Navigating Common Sizes for Efficiency and Cost-effectiveness
To ensure maximum productivity and minimum cost in the selection of end mills for machining operations, it is imperative that one learns how to navigate through the sizes available. Generally, standard-sized end mills are made with regard to various machining requirements as they balance between performance, tool availability, and cost-effectiveness. However, this may not be the case for all applications which call for a custom-sized end mill. The determination of whether it’s appropriate to go for general or specialized tools largely depends on some key parameters:
- Material Being Machined: Different materials dictate specific tolerances and geometries that might not be provided by standard sizes hence necessitating the use of custom designed ones so as achieve desired surface finish and dimensional accuracy.
- Complexity of Machining Operation: Complex or unique shapes can’t be made using usual endmill sizes due to their limitations in terms of design features, but this can be realized by making tailor-made cutters that take care of such difficulties during production.
- Production Volume: When dealing with large-scale production runs, time savings come into play because the ready availability, together with low pricing associated with typical sizes, is advantageous compared to waiting periods occasioned by higher costs related to special size cutters that would be used only once and then discarded after job completion.
- Tolerance Requirements: It is almost impossible to achieve tight tolerance levels especially where extreme precision is required if one relies on ordinary dimensioned cutting tools thus there arises need for these extra precise instruments which should conform to given allowable deviations depending on what needs done at hand.
- Cost-Benefit Analysis: People normally do not like spending more money than necessary or waiting longer than expected; hence, affordability plus quick delivery make general sizes appear attractive but when we talk about performance efficiency during machining processes leading to higher scrap rates reduction coupled with strictly meeting design requirements then savings achieved through purchase and use of particular custom sized cutter cannot be overemphasized.
A good understanding of these considerations will enable manufacturers decide wisely when adopting basic measurements for end milling operations and when to go for special tools. In the end, what matters most is choosing an alternative that strikes a balance between performance improvement, cost effectiveness and operational efficiency.
Best Practices for Choosing the Right End Mill for Your Workpiece
Assessing Workpiece Material and Machining Operations
It is very important to take into account the workpiece material when choosing an end mill for a given machining operation. Different materials have different hardnesses, thermal conductivities, and abrasivenesses, which can greatly affect tool life and productivity. Some primary parameters to consider are:
- Material Hardness: The strength of cutting tools made from carbide or cobalt should be used on harder materials so that they don’t wear out quickly under high stress.
- Thermal Conductivity: Materials with low thermal conductivity tend to retain heat, which might impact tool life. This can be solved by coating the tool or designing its flute differently.
- Abrasive Nature: Fiber reinforced composites among other things are highly abrasive hence requiring special coated end mills that resist wear.
Balancing roughing needs with finishing requirements through end mill selection requires understanding what each process aims at. Roughing seeks to remove large amounts of material fast therefore needs tools with larger flutes for good chip removal efficiency while finishing concentrates on achieving final dimensions, tolerances and surface finishes thus requiring higher flute counts for smoother surfaces.
Understanding the Importance of Rigidity in Tool and Workpiece
To guarantee the best tool performance and workpiece accuracy, it is important to have a rigid system in machining. Tool deflection, poor surface finish, and increased tool wear can be caused by a lack of rigidity. Among the things affecting rigidity are as follows.
- Tool Length: Shorter tools are more rigid compared to long ones; thus, minimizing bending requires using shortest possible tool length for operation.
- Tool Holder and Machine Spindle: During machining processes it’s important that high-quality holders with rigid spindles should be used so as not to lose stability while cutting.
- Workpiece Fixturing: Clamping and supporting work pieces correctly stops them from moving about while being machined; this is necessary for precision as well as preventing breakages caused by tools catching on rotating jobs.
If these factors are taken into account together with roughing vs finishing needs then end mills can be chosen that deliver maximum performance efficiency given specific tasks at hand during production thereby ensuring highest quality output while extending lifespan of instruments used thereby cutting down on costs.
Maintaining Your End Mills: Tips and Tricks
Regular Inspection and Maintenance for Optimal Performance
To guarantee the long life and peak performance of end mills, it is necessary to subject them to regular checkups and maintenance operations. These activities serve to extend the duration for which the tools can be used while also ensuring that precision in machining is upheld. Below are some of the things that should be taken into account:
- Visual checking: Inspection must be done on a regular basis so as to detect signs of wear, such as chip-off or flank wear, among others. For early stages, which cannot be seen with the naked eye, one may use a magnifier or microscope.
- Cleaning: Cleaning should be done properly after every use to prevent the accumulation of materials at the cutting edges; this could interfere with how well they perform their tasks. Ultrasonic cleaners can clean thoroughly without damaging them.
- Conditioning of coatings: Coating’s state should always be monitored since over time they may wear out; TiAlN or AlCrN are examples of coatings used in order to reduce high temperature effects and protect against wearing hence prolonging tool life. When these layers show significant signs of attrition, tool performance might suffer too.
Dealing with Wear: When to Sharpen and When to Replace
Figuring out when to sharpen or replace a tool is important in the knowledge of wear patterns. Here’s a guide:
- Minor Flank Wear: Tools that have minor flank wear can often be re-sharpened. Doing this right can really extend the life of the tool, maintaining its geometry and cutting-edge integrity.
- Major or Irregular Wear: If there are deep grooves, chips along the edge (or other forms of major/irregular wear) shown by any given tool; it may be cheaper as well as safer just replacing them altogether. The original performance might not be restored after sharpening such cases which poses risk to workpiece quality.
Critical Parameters for Decision-Making:
- Tolerance Requirements: When working on machining operations with tight tolerances even slightest signs of wearing should call for immediate replacements so as to ensure good surface finish and dimensions accuracy.
- Workpiece Material Hardness: The harder materials tend to wear tools faster, thus necessitating frequent resharpening/replacement of the tools used on them.
- Operation Type: Precision finishing cuts may not tolerate any level of tool dullness compared roughing-out cuts where higher feeds/speeds are used which cause rapid edges breakdowns.
In addition to consistent checking and maintenance routines, manufacturers should also understand end-mill failure modes. This will help them optimize their use based on different applications as it improves both process productivity and cost per unit produced.
Reference sources
Online Article – “A Guide to End Mill Sizes and Their Applications”
Source: PrecisionMachiningInsights.com
Summary: This article is a comprehensive online guide that goes in-depth on common end mill sizes and their specific applications in precision machining. It starts with the ranges of end mill diameters available – from micro-mills for small intricate detail work up to larger sizes capable of removing large amounts of material quickly. There is also a brief mention of how important it is to choose the right size end mill if you want smooth finishes or accurate dimensions; this alone can save hours off your production time, so read carefully! Whether you’re an engineer, machinist or student looking to improve their process these tips will help them get there.
Research Paper – “Impact of End Mill Size Variability on Material Removal Rates and Surface Integrity”
Source: Journal of Manufacturing Science and Engineering
Summary: This research paper published in an academic journal discusses what happens when there are variations among cutting tools used during milling operations such as machines used for cutting metal parts into desired shapes by removing some unwanted material from them until obtaining final product. The author uses experimental analysis combined with comparative studies between different types of mills against various materials illustrate key insights into how one should select the best size tools for given tasks. Based on this knowledge, further investigation could be done or not applicable at all, but still worth reading about anyway!
Manufacturer Website – “End Mill Selection Guide by CutterMaster Pro Tools”
Source: CutterMasterProTools.com
Summary: If you are looking for end mills, then this website has just the guide you need! With detailed information about recommended usage per type and dimensionality represented, as well as performance data sheets provided alongside application examples, anybody working within professional realms, such as machinists who want higher efficiency levels while selecting tools, should take full advantage of these resources given here since they will provide hints on which size should be used where for achieving better results such as longer life expectancy better precision etc.
Frequently Asked Questions (FAQs)

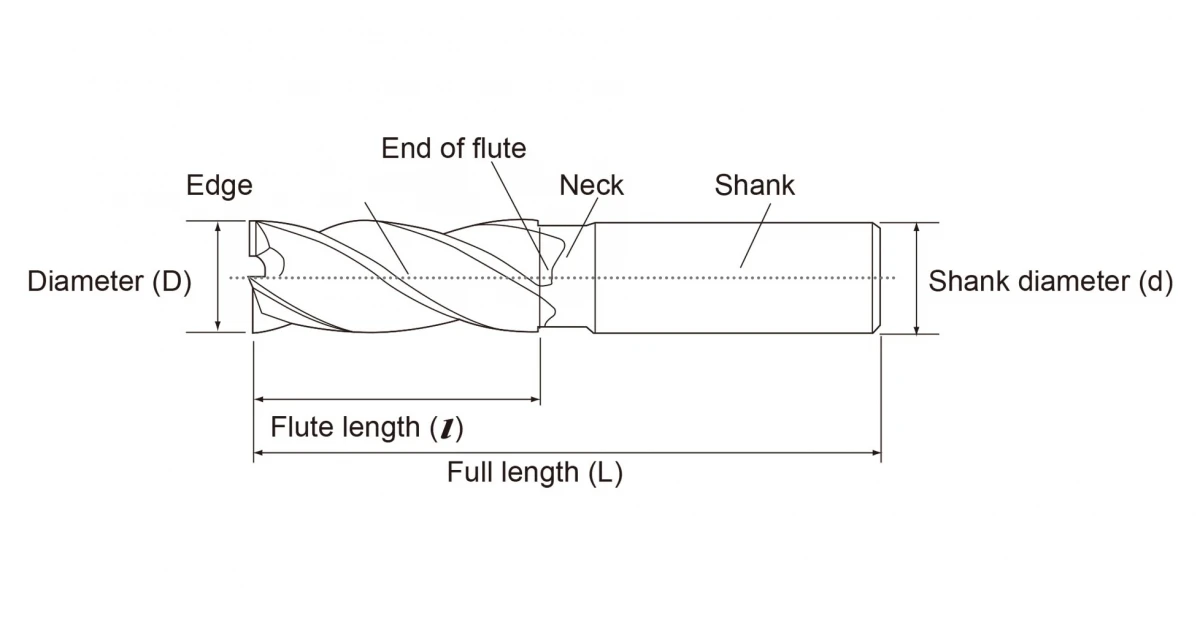

Image Source:speedtigertools.com
Q: What are the common sizes of end mills, and how do they affect the workpiece shape during milling?
A: Typical end mill sizes can be quite different, ranging from tiny 0.005-inch diameters for fine detail to larger diameters for bulk material removal. The size of an end mill drastically impacts the profile and accuracy of a workpiece as it is being milled. Small-diameter cutters are used for intricate detailing and delicate features, while larger ones rapidly remove large amounts of stock material. Choosing the right size end mill ensures that you achieve your required tolerances and surface finish on machined parts.
Q: What distinguishes corner radius end mills from ball end mills, and when should each be used?
A: Corner radius end mills have cutting teeth along both their face and edge, with a particular radius on the corner itself. They exhibit greater strength and resilience compared to sharp-cornered counterparts. Ball-end cutters possess rounded cutting edges that make them perfect for 3D contouring operations, which leave smoother finishes behind. Milling slots or pockets where added strength or durability is needed would benefit most from using corner radius tools, whereas ball ends excel in finishing cuts involving more complex shapes.
Q: Can you explain why counterboring is done with end mills and what specific types work best?
A: Counterboring is achieved using an End Mill by forming a flat-cut bottom hole that lines up with an existing one or enlarges it all together. When counterboring larger diameter holes; rougher endmills or general purpose ones having fewer flutes are recommended since they provide enough torque & cutting power necessary for efficient material removal while ensuring smoothness & accuracy of the counterbore.
Q: How does a corner radius end mill improve workpiece durability during milling?
A: A corner radius endmill helps increase part life while machining by reducing stress concentration points in corners created by sharp edge cutters. The rounded corner spreads cutting forces over a wider area which reduces the chances of workpiece chipping or cracking.Such tools are particularly useful when working on harder/brittle materials where maintaining integrity of the piece is crucial.
Q: What is the effect of selecting different end mill types and flute numbers on slot milling efficiency for machinists?
A: Different end mill types and flute numbers have a significant impact on both efficiency and outcome during the slot-milling process within a machine shop setting. Fewer-flute designed cutters (2-3 flutes) allow for larger chip load as well as better chip evacuation hence ideal for softer material slotting whereas higher number flute count typically 4 or more provide finer finish but may require slower feed rates due to clogging in harder materials. Machinists must take into account the type of material being worked on so that he/she can choose the appropriate tools for balancing productivity & surface quality.
Q: What benefits do tapered end mills offer over traditional end mill types in CNC milling operations?
A: In CNC milling operations, there are many ways that taper-end mills can be more advantageous than straight flute-end mills. This is especially useful when making molds and doing deep cavity work. It disperses cutting forces along sloping surfaces better by having a unique shape for a better surface finish. It will also reduce tool deflection and vibration. The other thing is that the tapered end mills can access tight areas or complex geometries, which may not be possible with larger diameter tools, hence ensuring high levels of accuracy and detail on final workpieces.
Q: How do corner rounding end mills contribute to the aesthetic and functional finish of a workpiece?
A: Corner rounding endmills have a specific design that allows them to round the corners of a workpiece contributing greatly towards its aesthetic as well as functional finish. On one hand, rounded edges make it look smoother and more attractive, while functionally, such edges decrease sharpness, enhancing safety during handling besides improving stress resistance, thereby reducing chances of cracking under pressure or impact. These attributes are desired for finishing processes which is why corner rounding cutters are important.
Q: What should machinists keep in mind when choosing an end mill so that they minimize wear and tear while maximizing cutting performance?
A: When selecting an end mill for minimum wear during cutting efficiency optimization, machinists must consider different things. Among these are the material being worked on, type of milling operation (finishing or roughing), cutter material compatibility(solid carbide / high-speed steel), number of flutes, and whether there exist any special features such as coating, length or diameter etcetera. In addition to this, it’s necessary that one understands how feed rate should be balanced against depth-of-cut relative speeds while still matching them with what has been recommended based on feed per tooth values provided within a given range by the manufacturer so as to achieve maximum efficiency with a prolonged lifespan.
