What Is Helix Angle and Why Does It Matter in End Mills?
Understanding the Basics of Helix Angle in Machining Applications
The helix angle of an end mill refers to the angle that is created between the tool’s central line and a horizontal line which just touches the cutter’s edge where it makes contact with the workpiece. This is very important because it tells us what happens when they come into contact with workpieces during cutting operations. Among other things, this factor affects how well or badly tools perform while being used for machining various materials. For example, if chosen correctly, helix angles can greatly improve cutting speeds, heat generation rates as well as chip removal capacities at different stages of a process
How the Helix Angle of an End Mill Affects the Cutting Process
- Cutting Forces: More than 45 degrees in general, a helix angle reduces axial forces on the workpiece and also the tool, which may result in lesser deflection and higher dimensional accuracy. On the other hand, lower helix angles increase axial forces, which could be useful for some materials requiring aggressive machining.
- Heat Distribution: This is where heat is distributed. Higher helix angles enhance rapid removal of heat from around the cutting zone and workpiece thereby lowering chances of damaging the work piece or wearing out tools due to heat.
- Chip Evacuation: Helix angles also affect chip shapes as well as its evacuation process. For example higher helix angles provide better exit routes for chips from deep pockets or slots during machining thereby reducing heat created through re-cutting these chips.
The Significance of Helix Angle Variations: Low vs High
- Low Helix Angles (roughly 30 degrees or less): These are normally used to work with harder materials like high-strength metals. The reason for this is that a lower helix angle strengthens the cutting edge making it more resistant to wear when used on tough materials. However, there are two drawbacks: heat builds up quicker, and chips aren’t removed as easily, which leads to worse surface finishes.
- High Helix Angles (greater than 45 degrees): When working with softer, more ductile materials such as aluminium or plastic it’s best to use higher helix angles because they create smoother cuts due to shearing action taking place while machining and also reduce the force applied onto workpiece which results in less burring and better surface finish being achieved.
In conclusion, one must not think about endmill helix angle choice as being optional but rather mandatory otherwise based upon what type of material will be machined, desired surface finish; whether we’re doing roughing or finishing cuts here); tool life. These criteria enable us to choose between high vs low helix angles for milling cutters in our specific applications, thus ensuring that we get the best possible outcome out of any given job according to both theory and practice alike
Choosing the Right Helix Angle for Your Machining Application
Factors to Consider When Selecting a Helix Angle
Finding the right tip angle for a spiral cutter involves considering several important factors, such as productivity, durability, and the quality of work done. When these parameters are understood, one can easily align their tools strategy with what they need to do.
Workpiece Material:
- A low helix angle is recommended for use on hard and brittle materials like stainless steel or titanium because it gives more support to the cutting edge which in turn reduces chances of chips breaking off.
- On the other hand, high helix angles work best with soft, ductile materials such as aluminum and plastic since they enable smooth cuts that generate less heat while leaving cleaner finishes behind.
Types of Machining Operations:
Where heavy roughing is required involving high stock removal rates per unit time, a low helix angle will bear up against increased loads without failing.
Conversely, if ultimate surface finish quality after or when performing light finishing operations is desired, then one should opt for higher helix angles as these reduce cutting forces on workpieces, leading to better finishes alongside longer tool lives being achieved.
- Tool Strength And Stability: Lowering helix angle increases the core strength of an end mill thus enabling resistance against bending during difficult cuts.
- Heat Management: Should hardened metals be involved wherefore, minimizing temperatures around edges should be considered necessary; otherwise, increasing them would help disperse heat faster within softer ones
- Chip Evacuation: In situations where chips have difficulties moving out fast enough during gummy material machining or slots production; higher tilt angleswill aid quick elimination of such shavings thereby avoiding re-cutting which causes overheating.
In summary, there can never exist a universally applicable solution to determining which helix angle is best because this depends on various factors, including what you are working on, how it ought to be done, and so forth. The only thing that matters most is aligning your choice based on either surface finish requirement, tool life expectation, or even productivity level anticipated, but this must happen in relation to other operational priorities if efficiency is to be maximized while better machining results are being sought.
Benefits of High Helix Angles in End Mills
Why are high helix angles particularly useful in end mills? There are many causes for this, all of which can greatly improve the process of machining. The first reason is that it helps with chip evacuation and surface finish. It provides a sharper cutting action, which makes it easier for chips to be removed from the cutting zone. Thus not only does it prevent re-cutting the chips (which would worsen the surface finish), but also reduces heat build-up and tool wear as well thereby improving efficiency.
Additionally, during machining, high helix angles serve an important function by reducing radial forces. These forces may cause tools to break, especially when they are delicate or used with brittle materials, hence extending their life. Moreover higher helical tools achieve more accurate cuts because they minimize deflection through lessening radial force.
Tools with a large angle between their spirals are often preferred for use in applications involving high-efficiency milling. This is because:
- Better Chip Removal: Efficient removal of waste material is necessary if we want our tools last long and prevent contamination of the workpiece.
- Enhanced Finish: High helix tools produce smoother surfaces, thus eliminating unnecessary secondary operations.
- Longer Lifespan Of Tools: Heat generation being low coupled with reduced forces acting on them results in longer lives having these unique features.
- Flexibility: This category of cutters can be used to work on different types of metals, making them versatile enough for any given situation where machining has been deployed widely.
In conclusion, choosing end mills with large spiral angles would be strategic as far as enhancing various parameters during cutting is concerned. Therefore, such devices lower deflection while contributing towards a finer finish by increasing the evacuation rate of chips from components being fabricated around them.
Understanding Low Helix Angles and Their Applications
Low helix end mills best serve particular materials and machining conditions because of their unique geometry and cutting mechanics. These tools have a reputation for having angles that do not exceed 30 degrees, which affects their performance in the following ways:
Materials and Machining Conditions:
Lower helix angles are perfect for working on harder materials like hardened steel or cast iron. The decreased angle applies more axial force, permitting it to cut into tough substances better.
Low resistance designs of low helix end mills make them well suited for use under aggressive machining conditions such as higher feed rates or deeper cuts in hard-to-machine metals.
Impact on Cutting Force and Tool Life:
The design of this kind of mill results in increased axial forces but reduced radial forces while cutting, thus increasing stability during machining, especially where there could be a lot of side forces like slots or pockets.
Because it has higher axially-directed components with greater energy levels behind each chip produced from harder workpieces – this characteristic serves to optimize even further the process of forming chips from hard-to-machinemetals through proper evacuation.
Improved Machining Performance with Hardened Materials:
When dealing with harder workpieces using these cutters, the following steps should be taken into consideration;
- Tool Material: Opting for tools made out of tougher substrates that are resistant to wear will enhance their life span even more.
- Coating: One can choose coated inserts designed specifically to withstand heat and abrasion, e.g., TiAlN coating or AlTiN coating, among others, which are very good at cutting through hard stuff
- Cutting Parameters: Speeds, feeds, depths-of-cuts can all be adjusted based upon material hardnesses relative tool strengths so as not to wear out too soon but still remove enough stock necessary for desired finishes.
- Lubrication/Coolant Application: Proper application methods will help evacuate chips properly reducing heat buildup around worked areas thereby prolonging life expectancy while maintaining maximum efficiency as well.
To put it all together, low helix end mills are chosen for their strength in cutting harder materials under aggressive conditions. These tools can greatly improve machining efficiency and extend tool life by understanding material choice, coating options, and cutting conditions.
Exploring Variable Helix End Mills: When and Why?
The variable helix end mills are novel in the field of machining since they minimize vibrations while cutting. This method involves using different angles with every new cutting tool which helps break up harmonic patterns produced during milling. Commonly experienced harmonic vibrations cause poor finish on surfaces, shorter lives for tools, and lower machine performance levels. By employing a range of helix angles, this type of mill can disrupt cyclical patterns, thereby resulting in better finishes and increased durability for the tools used.
Comparing Variable Helix End Mills to Standard Options
Variable helix end mills offer several advantages over standard, fixed-helix end mills:
- Less Vibrations: Different helical angles reduce resonance encountered while milling, thereby resulting in reduced wobbling and better workpiece finishing.
- Longer Life for Tools: Over time, variable helix end mills wear out less than their standard equivalents due to vibrations reduction that leads to lower-frequency patterns throughout.
- Increased Productivity: Considering that these instruments shake less, it implies that they can be operated at faster speeds with higher feeds which would remove materials quicker hence reducing cutting times.
- Flexibility: Variable helix endmills are adaptable to many different types of materials and machining conditions, so they perform consistently well across a wide variety of applications.
Selecting Variable Helix End Mills for Complex and Varied Materials
Choosing an appropriate variable helix end mill for specific materials and applications involves a number of considerations:
- Compatibility of Materials: Choose a tool material and coating that are compatible with the workpiece material. For example, tools with TiAlN coatings work well with high-temperature alloys.
- Variation in Helix Angle: The range of variation in the helix angle should be suitable for the desired application. Larger variations can provide improved vibration damping in harder materials.
- Number of Flutes: Flute count affects both finish quality and chip removal rate. More flutes result in a smoother finish, but higher machine capabilities may be required to prevent packing chips.
- Geometry of End Mill: Consider overall tool geometry including cutting edge design and end profile based on part complexity being machined; tools with corner radii or certain relief angles may perform better on intricate or hard-to-reach features.
In summary, variable helix end mills are an excellent choice when working with difficult-to-machine diverse materials because they help solve this problem by combining different features within one tool. Manufacturers can greatly increase their productivity while ensuring good surface finishes as well as extended tool life by understanding and adjusting such factors as material compatibility, helix angle variation, flute count, and tool geometry.
How to Extend Tool Life and Improve Machining Efficiency with the Right Helix Angle

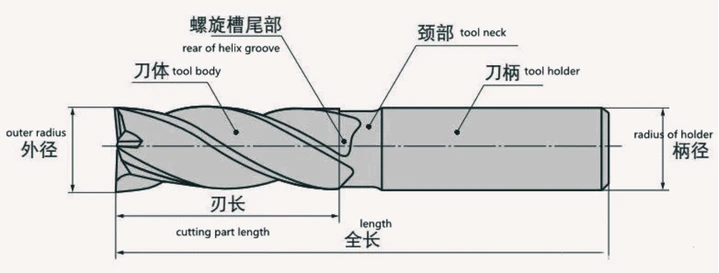

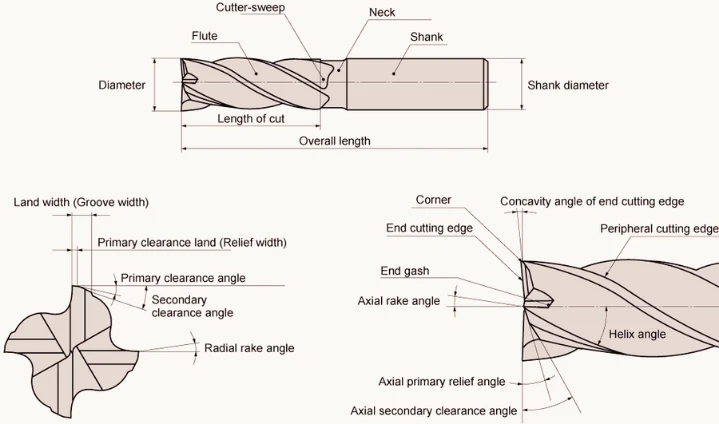

Image Source:mmc-carbide.com
Selecting the right spiral angle for a milling cutter is a critical step in increasing the life of the tool and improving machining performance. The helix angle also affects cutting forces, heat generated during cutting, and chip removal, which are all vital to the rate at which tools wear out as well as feed rates. There are some important points to take into account when considering this decision:
- Optimum helix angle selection: Normally, an increased helix angle (about 45 degrees or more) lowers impact forces on the tool, thereby reducing heat and wearing out. This is especially important during the machining of soft materials like aluminum. Nevertheless, a medium-range helix angle (around 35-40 degrees) can be more effective for cutting efficiency in tough materials such as stainless steel or titanium.
- Trade-offs between feed rates and tool life: Higher feed rates are supported by an end mill with bigger helix angles due to efficient chip removal and less cutting resistance that is offered by them. In this way, not only does it help speed up the process, but it also minimizes heat build, which can damage tools. The selected helix angle should be matched with adjusted feed rates so that the tool operates under optimum conditions, which extends its life span.
- Consideration for application-specific requirements: Besides just that, the type of operation being carried out during machining plays a vital role when choosing what value of helix angle one should use. For instance, during finish cuts, people would prefer using higher helix angles since they give better surface finishes, whereas roughing cuts where the material removal rate is high will benefit from lower values, offering greater rigidity to tools.
- How Helix Angle Affects Tool Longevity: With regard to wear patterns produced on tools, chatter marks are always associated with vibrations occurring at certain frequencies called harmonics. A well selected choice of spiral steepness may therefore dampen oscillations around these points thus extending tool life significantly. In addition rough surfaces left behind as result of chatter also contribute towards faster wearing out process hence need to select optimized values based on material properties and type of cut being performed.
- Connection Between Helical Angle And Life Of Tools Used: Tool life can greatly be extended by minimizing vibrations caused by inappropriate selections of spiral steepnesses. Chattering not only affects smoothness but also imposes additional loads onto implements thereby accelerating their deterioration rates. Consequently, an appropriate helix angle which has been tailored according to the work-piece being machined and application employed may reduce such adverse effects hence ensuring stable tool performance over longer periods.
All in all, it can be quite complex but manageable with a sufficient understanding of how various factors within end mills’ helical angles interact during different machining tasks aimed at increasing the service life of tools while using them cost-effectively in such situations.
Reference sources
- Online Article – “The Essential Guide to End Mill Helix Angles”
- Source: PrecisionMachiningInsights.com
- Summary: This guide is very detailed and explains the importance of an end-mill helix angle in machining processes. It defines the helix angle, its role in cutting dynamics, and how it affects surface finish quality. The author also compares different helix angles to help readers determine which works better with certain materials or operations. This is a must-have for any machinist who wants to know more about end mill design and how it can improve performance as well as increase tool life.
- Scientific Journal Article – “Impact of Helix Angle Variation on End Mill Performance”
- Source: Journal of Advanced Manufacturing Technology
- Summary: Written by top manufacturing technology investigators, this reviewed-by-peers paper offers a full study into how different end mill performances are influenced by changes in helix angle. It presents experimental data on the effect of various helix angles on tool wear, vibration, and chip removal rate through thorough tests and examination. These findings will help us know what range we should be looking at when choosing the best spiral slope that will improve cutting speeds or prolong lifespan for all types of materials used in machining processes. Such academic work is necessary reading material for any person engaged with selecting tools as well as optimizing procedures during precise manufacturing operations.
- Manufacturer Website – “Helix Angle Selection Tool by MaxCut Tools”
- Source: MaxCutTools.com
- Summary: A top producer of exactness slicing instruments, MaxCut Tools, created a web choice device to help engineers and machine operators decide on the best end mill helix angle for their specific machining needs. This online platform explains the importance of various helix angles as well as recommends where each should be used; such as using less aggressive angles with harder materials or higher ones when milling aluminum or other soft metals. It also lists technical specifications alongside performance data sheets for all its end mills, which allows customers to make informed decisions based on what they need them for in their operations. If you’re looking for specific advice in optimizing your milling operation through tooling solutions, then this is definitely worth checking out – The Helix Angle Selection Tool
Frequently Asked Questions (FAQs)
Q: What is the helix angle of an end mill?
A: The helix angle is that angle which is made between the center line of the tool and a line tangent to the cutting edge. It’s one among those things that play crucial role in determining how well or poorly any given cutting tool will perform.
Q: Why is the helix angle important in machining?
A: There are several factors at stake when it comes to the particular aspects of tools used during manufacture, such as chip evacuation, finish quality, and axial force. It’s necessary to select appropriate values if optimal performance has to be achieved.
Q: How does the helix angle affect the cutting process?
A: When it comes to materials like aluminum, higher angles provide more shearing action, while lower ones are best suited for cast iron. In other words; this parameter alone can determine whether an operation shall be efficient or not.
Q: What are some advantages or benefits I may get from using different helix angles in my end mills?
A: By varying these parameters, you can expect improvements in tool life, surface finishes, and chip evacuation. Depending on your needs, there are many ways through which you could enhance machining performances by simply choosing various types of them.
Q: How do I choose the right helix angle for my machining needs?
A: Various things need consideration when determining what amount would be ideal for any given case like material being worked on, desired finish quality among others so take time and reflect over them before making final decision on which one should work best under specific conditions.
Q: Tell me about slow and high helix angles.
A: Less than 45 degrees of inclination are considered low-helix angles. They are used for heavy cuts and hard materials. On the other hand, above 45 degrees of inclination is regarded as high-helix angle which should be used for light cuts on such materials as aluminium to ensure better chip removal.
Q: Why do machinists forget about the helix angle?
A: Usually, toolmakers ignore this parameter because they concentrate on other aspects of tool design. Nevertheless, if you want your tools work better and achieve good machining performance it is necessary to take into account not only different parameters but also the helix angle too.
