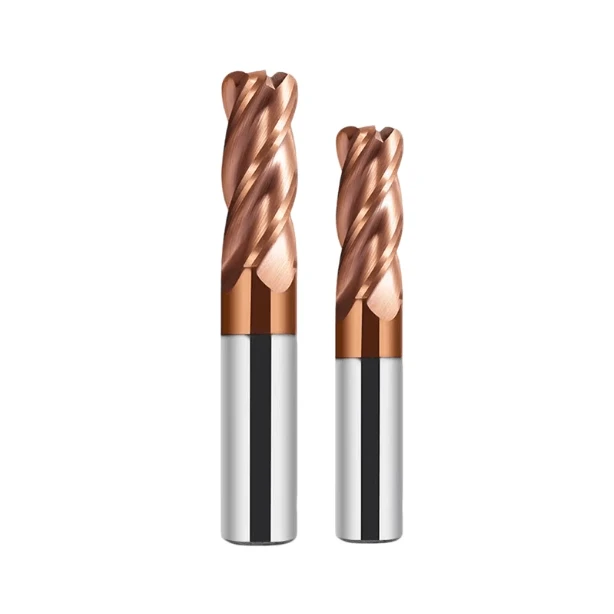

The helix angle of an end mill is a critical parameter that influences the performance and outcome of a machining operation. This angle, defined as the angle between the edge of the helix and an imaginary line parallel to the mill’s axis, affects the cutting efficiency, the surface finish of the machined part, and the tool’s lifespan. A higher helix angle, typically ranging from 40 to 60 degrees, creates a shearing action that facilitates smoother cuts, reduces heat generation, and is generally preferred for finishing operations or working with non-ferrous materials. On the other hand, a lower helix angle, around 30 degrees, offers more rigidity and is better suited for roughing operations or machining harder materials. Selecting the appropriate helix angle is dependent on material properties, the type of machining operation, and the desired outcome, making it essential for precision machining endeavors.

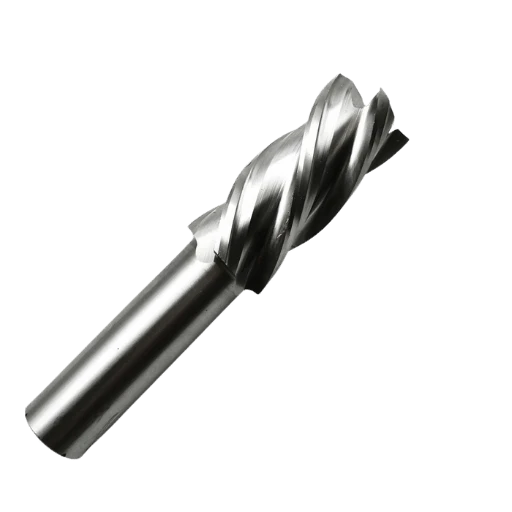

Understanding the Basics of Helix Angle in End Mills
What Is the Helix Angle of an End Mill?
The helix angle is a fundamental aspect of an end mill’s design, and it significantly impacts the tool’s efficiency and performance. In technical terms, it is defined as the angle between the helix of the cutter’s tooth and the axis of the cutter. Imagine unwinding the helix; the angle you observe between the unwound line and the central axis of the end mill is the helix angle. This feature plays a pivotal role in determining the behavior of the tool during the cutting process.
How Does Helix Angle Affect Cutting Efficiency?
The helix angle affects cutting efficiency in several ways:
- Chip Evacuation: A higher helix angle facilitates more efficient chip removal, thereby reducing the risk of re-cutting chips which can degrade the finish and accuracy of the machined part.
- Heat Dispersion: The angle influences how heat is dispersed during the cutting process. A higher angle tends to spread the heat over a larger area of the cutting edge and away from the workpiece, potentially extending tool life.
- Cutting Forces: The direction and magnitude of cutting forces change with the helix angle. A larger angle reduces the axial forces exerted on the workpiece and the tool, which can lead to smoother cutting operations and less wear on the tool.
The Difference Between High Helix and Low Helix Angles
- High Helix Angles (40 to 60 degrees)
- Suited for: Finishing operations, softer and non-ferrous materials like aluminum.
- Benefits: Better surface finish, lower heat generation, and efficient chip evacuation.
- Drawbacks: Less rigidity, which may not be suitable for very hard materials or heavy cutting loads.
- Low Helix Angles (around 30 degrees)
- Suited for: Roughing operations, machining harder materials such as steel or titanium.
- Benefits: Increased tool rigidity, making it ideal for high-load cutting and extending tool life under tough conditions.
- Drawbacks: Can lead to poorer surface finishes and less efficient chip evacuation.
Selecting the correct helix angle for an end mill involves considering the material to be machined, the specific machining operation (roughing versus finishing), and the desired outcome in terms of surface finish and tool lifespan. By understanding these distinctions and how the helix angle impacts cutting efficiency, machinists can make informed decisions to optimize their machining processes.
Why the Right Helix Angle Matters for Your CNC Machine
Impact of Helix Angle on CNC Machine Performance
The helix angle of an end mill significantly influences the performance of CNC (Computer Numerical Control) machining operations. By affecting factors such as chip formation, heat dissipation, and cutting forces, the helix angle plays a pivotal role in determining the efficiency, finish quality, and tool life during machining processes.
Choosing the Right Helix Angle for Specific Materials
When selecting the appropriate helix angle for machining specific materials, it is crucial to take into account several key parameters to optimize the performance and outcomes of CNC operations. The following parameters are paramount when choosing the right helix angle:
- Material Hardness: Harder materials require end mills with lower helix angles to maintain rigidity and withstand the high cutting forces, whereas softer materials can benefit from higher helix angles for better chip evacuation and surface finish.
- Machining Operation Type: For roughing operations, a lower helix angle increases tool strength and is preferable for handling the higher loads. Finishing operations, on the other hand, benefit from higher helix angles for a smoother surface finish.
- Heat Sensitivity of Material: Materials that are sensitive to heat, such as certain plastics and non-ferrous metals, require end mills with higher helix angles to efficiently evacuate chips and reduce heat buildup at the cutting zone.
- Chip Evacuation Requirements: Efficient chip evacuation is crucial to prevent re-cutting of chips and damage to the workpiece or tool. Materials that produce long, stringy chips are best machined with high helix angles to facilitate chip removal.
By carefully considering these parameters, machinists and engineers can select the helix angle most suitable for the material and operation at hand. This deliberation ensures an optimal balance between cutting efficiency, surface quality, and tool longevity, leading to improved overall performance of CNC machining processes.

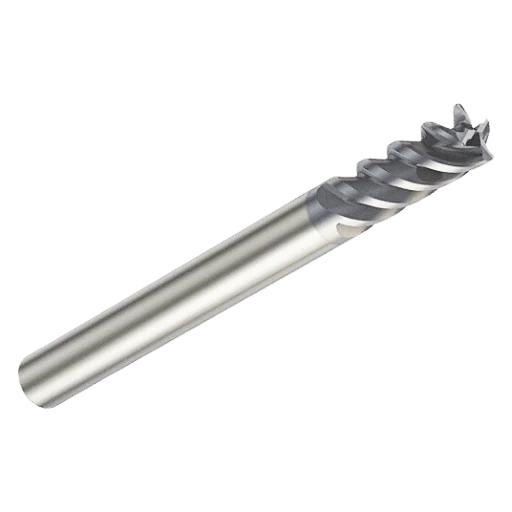

High Helix vs. Low Helix: Which Is Better for Your Project?
Advantages of High Helix Angles in End Mills
High helix end mills are characterized by their ability to efficiently evacuate chips, which is particularly beneficial in slotting and pocketing operations. The helix angle, typically above 40 degrees, contributes to several key advantages:
- Improved Surface Finish: The increased angle reduces the force per tooth, resulting in a smoother cut and thus a better surface finish on the workpiece.
- Enhanced Chip Evacuation: High helix angles facilitate superior chip removal, reducing the risk of chip re-welding and tool failure, especially in sticky or soft materials.
- Reduced Heat Generation: With chips being efficiently evacuated, there is less friction and, consequently, reduced heat generation. This is critical when machining heat-sensitive materials.
When to Use Low Helix End Mills
Low helix end mills, with angles less than 30 degrees, are ideal for machining situations that demand increased tool strength and rigidity. Their use is preferable under the following conditions:
- Machining of Hard Materials: When dealing with harder materials, a low helix angle improves the tool’s resistance to the high cutting forces involved.
- High-Load Operations: During roughing operations or when significant material removal is required, the lower helix angle enhances the strength of the tool.
- Reducing Vibration in Uneven Operations: In applications with irregular surfaces or varied material thickness, low helix angles can diminish chatter and vibration, enhancing tool stability.
Matching the Helix Angle to the Cutting Task
Selecting the correct helix angle for an end mill is essential for optimizing machining performance and tool life. Key considerations include:
- Material Being Machined: Soft materials can be effectively machined with high helix angles, whereas hard materials often require the robustness of a low helix angle.
- Desired Surface Finish: High helix angles are conducive to achieving finer finishes.
- Tool Strength Requirements: Choose low helix angles for operations demanding high cutting forces.
- Heat Sensitivity: High helix angles can prevent excessive heat buildup in materials sensitive to thermal effects.
Appropriately matching the helix angle to the specific cutting task ensures not only the integrity of the machined part but also the efficiency and durability of the machining process.
Maximizing Tool Life with the Right Helix Angle
The helix angle of an end mill directly impacts its wear and longevity by influencing the manner in which the tool engages with the material it is cutting. A high helix angle, typically preferred for softer materials, offers a smoother cutting action which can reduce the amount of heat generated and result in less tool wear over time. However, the increased sharpness and angle make these tools more susceptible to chipping and breakage when used improperly or in unsuitable materials.
Tips for Extending the Life of High Helix Tools
To maximize the life of high helix angle tools and ensure their efficient operation, consider the following strategies:
- Optimal Cutting Parameters: Adjust the spindle speed, feed rate, and depth of cut to match the material being machined. High helix tools often excel at higher speeds with appropriate adjustments to feed and depth.
- Proper Tool Path Optimization: Use software to optimize tool paths, minimizing tool engagement and avoiding excessive tool load.
- Use of Coolants: Applying a suitable coolant can reduce heat buildup, thereby protecting the tool’s cutting edge.
- Tool Material Selection: High helix tools made from materials such as carbide, which is harder and more durable, can significantly extend tool life.
- Rigidity of Tool Setup: Ensure that the tool setup is as rigid as possible to reduce vibrations, which can lead to premature wear or damage.
- Regular Inspection and Maintenance: Regularly inspect tools for signs of wear or damage and maintain them appropriately to avoid unexpected failures.
By comprehending how helix angles influence tool wear and adhering to these guidelines, machinists can significantly extend the life of their high helix angle end mills, ensure smoother operations, and achieve cost savings through reduced tool replacement frequency.

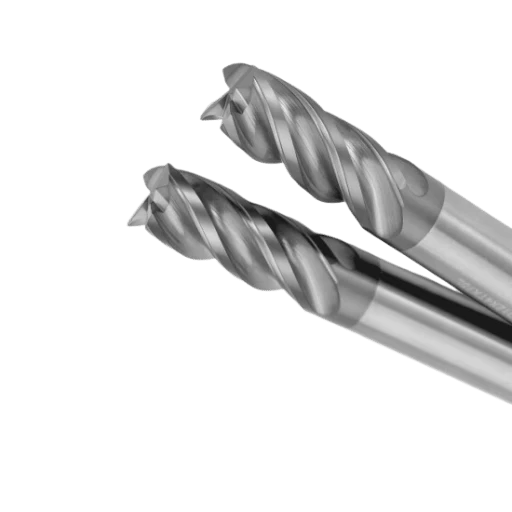

Exploring Variable Helix End Mills for Superior Performance
Variable helix end mills represent an advanced class of cutting tools designed to optimize machining performance by varying the helix angle along the length of the cutting edge. This innovative design approach reduces harmonic vibration, a common issue encountered with uniform helix tools during the machining process. The benefits of variable helix designs, particularly in complex machining operations, are multifaceted and significant:
- Reduced Vibrations: By varying the helix angle, these tools disrupt the rhythmic pattern that contributes to harmonic vibration. This results in smoother operations and higher quality surface finishes.
- Increased Material Removal Rates: Thanks to the reduction in vibrations, machinists can often increase feed rates without compromising finish quality or tool integrity, leading to more efficient material removal.
- Enhanced Tool Longevity: Variable helix end mills experience less wear and tear during operation due to minimized chatter and vibration, extending tool life.
- Improved Surface Finish: The smoother cutting action of variable helix tools yields superior surface finishes, reducing or eliminating the need for secondary finishing processes.
- Versatility Across Materials: The design of these tools makes them adept at cutting a wide range of materials, from aluminum and steel to exotic alloys, making them highly versatile additions to any tooling inventory.
In complex machining tasks where precision, surface quality, and tool longevity are paramount, the unique attributes of variable helix end mills justify their adoption into machining strategies. Through careful design and the strategic variation of the helix angle, these tools provide a significant competitive advantage in demanding machining environments.
Guide to Carbide and Other Material End Mills by Helix Angle
Why Choose Carbide End Mills with Optimal Helix Angle
Choosing the right carbide end mills for your machining operations is crucial to optimizing performance, efficiency, and outcome. The helix angle of an end mill plays a significant role in determining its cutting abilities and suitability for different materials and applications. Herein lies the importance of selecting carbide end mills with an optimal helix angle. Several key parameters justify this choice:
- Material Compatibility: Carbide, known for its exceptional hardness and thermal stability, pairs exceptionally well with optimal helix angles to cut through diverse materials smoothly. This compatibility ensures fewer tool changes, reducing downtime and costs.
- Heat Dissipation: An optimal helix angle aids in efficient chip evacuation, reducing the heat buildup on the cutting tool and workpiece. This heat management is critical in maintaining the integrity of both the tool and the machined parts.
- Cutting Efficiency: The right helix angle minimizes the cutting forces exerted on the tool and the workpiece, leading to more efficient material removal. This is particularly beneficial in achieving high precision and surface finishes without compromising tool life.
- Tool Longevity: Carbide end mills with an optimal helix angle suffer less wear and tear since the cutting force distribution is more balanced. This extends the lifespan of the tool, making it a cost-effective choice for high-volume or strenuous machining tasks.
- Versatility: An optimally designed helix angle allows carbide end mills to be highly versatile, effectively machining materials ranging from soft aluminum to harder steels and exotic alloys. This versatility makes them indispensable in a variety of industrial applications.
In conclusion, the choice of carbide end mills with an optimal helix angle is justified through improved material compatibility, efficient heat dissipation, cutting efficiency, tool longevity, and versatility. These benefits collectively enhance the overall productivity and quality of the machining process, making them a preferred choice in complex and challenging machining tasks.
References
1. Source: Carbide3D Community Forum – Choosing Endmill Helix Angles
- URL: https://community.carbide3d.com/t/choosing-endmill-helix-angles/24942
- Annotation: This source from the Carbide3D community forum provides a comprehensive overview of selecting endmill helix angles, ranging from 15° to 60°, with general-purpose end mills typically around 30°. The forum post is valuable for readers seeking practical advice and insights from a community of machining enthusiasts and professionals. It covers the basics of helix angles and their impact on machining operations, making it an excellent starting point for understanding the importance of choosing the right helix angle for precision machining.
2. Source: SAMHO Tool Blog – Unlock the Secrets of Micro End Mills: Elevate Your Machining Precision
- URL: https://samhotool.com/blog/unlock-the-secrets-of-micro-end-mills/
- Annotation: The SAMHO Tool blog post focuses on micro end mills, emphasizing their durability and sharpness for detailed work. This source is particularly relevant for readers interested in high-precision machining applications requiring intricate detail. The article highlights the unique considerations when choosing micro end mills, including helix angles, and offers insights into how these tools can enhance machining precision. As a manufacturer’s perspective, this source provides authoritative information on product specifications and applications.
3. Source: Solutions by Travers – Choosing The Right Helix Angle For Your Machining Application
- URL: https://solutions.travers.com/metalworking-machining/milling/the-pros-cons-of-high-and-low-helix-angles
- Annotation: This source from Solutions by Travers offers a detailed analysis of the advantages and disadvantages of low, high, and variable helix angles in machining applications. It is a highly informative piece that delves into how different helix angles can impact machining efficiency, workpiece finish, and tool longevity. The article provides a balanced view, making it an invaluable resource for professionals seeking to optimize their machining processes through careful selection of end mill helix angles. The technical depth and clarity make it suitable for both newcomers and experienced machinists.
Frequently Asked Questions
Q: What is the significance of the end mill helix angle in precision machining?
A: The significance of the helix angle of an end mill in precision machining lies in its impact on the cutting efficiency, tool life, and workpiece surface finish. A properly selected helix angle will undoubtedly improve the removal of chips from the cutting zone, reduce heat generation, and minimize vibrations, leading to high efficiency and precision in CNC machining operations.
Q: How does the helix angle of end mill affect the cutting process?
A: The helix angle of an end mill affects the cutting process by altering the rake angle, which in turn influences the cutting forces and chip formation. A larger helix angle end mill, for example, typically offers a better shearing action and smoother chip evacuation, reducing the heat and improving surface quality. On the other hand, a small helix angle might produce more downward force, making it suitable for certain materials and applications.
Q: What are the differences between high helix end mills and standard end mills?
A: High helix end mills, often featuring a 45° helix or higher, are designed for specific materials and applications that benefit from the higher angle of the helix. These cutting tools produce less vibration and can achieve a superior finish on the workpiece. In contrast, standard end mills, with a helix angle of around 30°, are more versatile and used for a wide range of materials but may not excel in any specific scenario compared to their high helix counterparts.
Q: How do different helix angles impact the choice of end milling cutter for aluminum?
A: Aluminum benefits from cutting tools that evacuate chips efficiently and reduce the likelihood of chip re-welding, a common issue when machining this metal. Therefore, a large helix angle end mill, such as those with a 45° helix, is often chosen for aluminum to ensure smooth chip evacuation and reduce heat buildup. The higher helix angle also results in a finer finish on the workpiece surface, crucial for many aluminum projects.
Q: Can the size of the helix angle influence the axial depth of cut?
A: Yes, the size of the helix angle can influence the axial depth of cut a tool can handle. Generally, a larger helix angle allows for a greater axial depth of cut for a given application, as it can evacuate chips more effectively and reduce the risk of chip packing. However, it’s important to balance the helix angle with other factors such as tool strength and material to optimize performance.
Q: What role does the helix angle play in the development of CNC machining technology?
A: The helix angle plays a crucial role in the development of CNC machining technology by enabling the creation of tools that match the specific demands of modern materials and machining processes. As CNC technology evolves, the demand for tools with optimized helix angles for high efficiency, reduced tool wear, and high-quality finishes has increased. Manufacturers continue to innovate in the design of helical end mills to meet these needs.
Q: When should I consider using a cutting tool with a small helix angle?
A: You should consider using a cutting tool with a small helix angle when working with materials that require higher cutting forces or when dimensional stability of the workpiece is a priority. Smaller helix angles generate more axial force, pressing the workpiece against the machine table, which can be beneficial for machining hard materials like cast iron or for operations needing high dimensional accuracy.
Q: How can I determine the optimal helix angle for a specific machining project?
A: Determining the optimal helix angle for a specific machining project requires considering the material being machined, the type of machining operation, the desired surface finish, and the machine tool’s capabilities. Generally, materials that are easy to deform or require a fine finish benefit from higher helix angles. It’s often best to consult with tool manufacturers or specialists who can provide recommendations based on extensive experience and data from similar projects.
