Unlocking the Versatility of End Mills: Essential Insights

End mills are precision cutting tools used predominantly in the metalworking and milling industries for various machining operations. These operations include producing fine finishes on surfaces, carving intricate details, and performing complex cut-outs. Furthermore, end mills are employed in shaping and cutting materials such as steel, aluminum, titanium, and some plastics and composites. Their versatile design allows for a wide range of applications, from slotting and profiling to plunging and contouring, making them indispensable in manufacturing precision parts and components.

Understanding the Basics: What is an End Mill?

Defining an End Mill in Modern Manufacturing

An end mill can be defined as a type of milling cutter, a cutting tool used in industrial milling applications. It is distinct for its design and functionality, bearing a cylindrical shank and often multiple cutting edges at its end head. End mills are instrumental in face and peripheral milling, enabling precision cutting of materials to generate various shapes and surfaces.

Critical Characteristics of End Mills: Flute and Cutting Tool Material

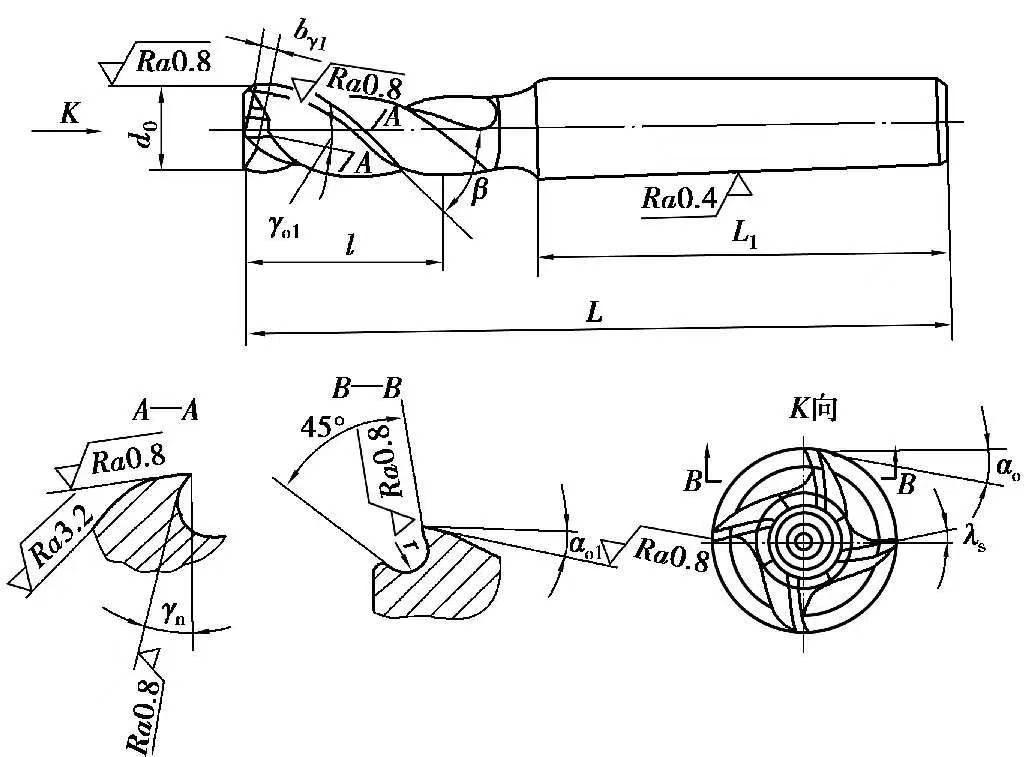

Flute Design in End Mills

The flute design in end mills plays a critical role in the tool’s performance and is a defining characteristic. Flutes are grooves or valleys cut into the body of the end mill, which serve several essential functions:

1. Chip Removal: Flutes provide a pathway for chips to escape the cutting area, thereby reducing the heat and wear on the tool.
2. Cutting Edges: More flutes mean more cutting edges, which increases the tool’s ability to produce a fine finish.
3. Strength and Flexibility: The number of flutes also impacts the strength of the end mill. Fewer flutes create a more robust but less flexible tool suitable for heavier cutting operations.

Typically, end mills range from 2 to 8 flutes, depending on the specific application. Fewer flutes are preferred for machining softer materials or when larger chip clearance is required, whereas more flutes are used for more complex materials and finishing operations.

Cutting Tool Materials

The material from which an end mill is constructed significantly influences its durability, performance, and the types of materials it can effectively cut. The most common end mill materials include:

1. High-Speed Steel (HSS): HSS is a versatile and economical option for general machining tasks.
2. Cobalt Steel: Provides better heat resistance and is more durable than HSS, making it suitable for cutting more rigid materials.
3. Carbide: Carbide end mills are extremely hard and wear-resistant, offering excellent performance in high-production environments. They are especially effective for cutting rigid materials and for high-speed operations.
4. Diamond Coatings: Some end mills feature diamond coatings for machining rigid materials, such as graphite or composite materials, providing a significantly longer tool life.

Each material and design choice offers a trade-off between cutting performance, speed, tool life, and the cost of the end mill. Understanding these characteristics allows manufacturers to select the most appropriate end mill for their specific machining tasks, optimizing performance and cost-efficiency in their operations.

The Evolution of End Mills: From High-Speed Steel to Solid Carbide

The progression from high-speed steel to solid carbide marks a significant evolution in the manufacturing of end mills. The need for increased efficiency, precision, and durability in machining operations has driven this transition. Solid carbide end mills provide substantial advantages over HSS, including the ability to withstand higher temperatures and maintain a sharper cutting edge for extended periods. Consequently, they are preferred in high-volume production settings and when machining hard-to-cut materials, such as titanium and high-temperature alloys. The shift to carbide has also been facilitated by advancements in manufacturing technologies, allowing for the cost-effective production of solid carbide tools with intricate geometries and enhanced performance characteristics.

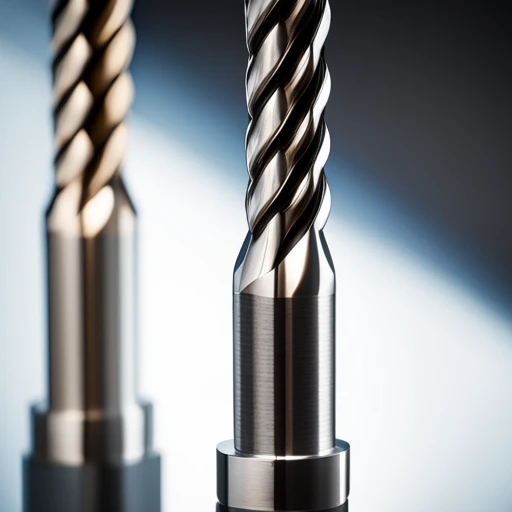

Exploring the Different Types of End Mills

The Wide World of End Mill Varieties encompasses a broad spectrum of tools designed for various machining needs, each with its unique geometry and purpose. Among these varieties, flute count and tool geometry are pivotal in determining their applicability and performance in machining operations.

Specialized End Mills: When to Use

• Roughing End Mills: These are utilized for heavy material removal rates, particularly in rough milling operations. Their design incorporates a rugged tooth profile capable of withstanding significant cutting forces. Roughing end mills are ideal for shaping a piece before finishing and are especially useful in machining more rigid materials.
• Square End Mills: Featuring a square cutting end, these mills are employed for general-purpose milling applications, including slotting, profile milling, and plunge cutting. Square end mills are versatile tools that can handle various materials.
• Corner Radius Mills: Designed with a rounded corner, these end mills provide greater strength and avoid the stress concentration typically associated with sharp edges. Corner radius mills are preferable when the goal is to enhance surface finish in contour milling and when milling molds, dies, and aerospace components.

Deciphering the Code: 2 Flute vs 4 Flute End Mills

The choice between two-flute and four-flute end mills primarily depends on the machined material and the desired finish.

• 2 Flute End Mills: These are ideally suited for machining softer materials like aluminum, where efficient chip clearance is crucial. The fewer flutes allow larger chip spaces, reducing the risk of clogging. They’re also preferred for operations like slotting and contour milling, where excellent surface finishes are desired.
• 4 Flute End Mills: With an additional two flutes, these end mills provide a finer finish and can execute tighter cuts. They are most effective on more complex materials like steel, where their design contributes to their longevity and ability to hold tighter tolerances. However, the smaller chip spaces are generally not recommended for materials or operations where chip evacuation is a primary concern.

By judiciously selecting the appropriate end mill based on tool type, material, and desired outcome, manufacturers can optimize their machining operations for efficiency, precision, and cost-effectiveness.

The Art of Choosing the Right End Mill for Your Project

Matching the End Mill to the Material: Carbide, Cobalt, and High-Speed Steel Options

Choosing the correct end mill material is crucial for the success of your machining project. The material of the end mill affects not only its longevity but also the quality of the finish and the efficiency of the cutting process.

• Carbide End Mills: These are preferred for their hardness and heat resistance, making them ideal for cutting through rigid materials like stainless steel and titanium. They maintain their cutting edge longer than others, translating to fewer tool changes and consistent precision. However, their brittleness makes them less suitable for highly variable loads projects.
• Cobalt End Mills (HSS-Co): Cobalt end mills offer a higher cutting efficiency and more excellent heat resistance than standard high-speed steel (HSS). They are particularly effective for cutting through more complex steel grades or other rigid materials, balancing durability and cost well.
• High-Speed Steel (HSS) End Mills: HSS end mills are valued for their flexibility and are suitable for various materials, including metals and plastics. They are handy for situations requiring intricate designs or variable cutting depths. While not as durable or heat-resistant as carbide or cobalt options, HSS tools are significantly more cost-effective.

Understanding the Importance of Flute Count and Geometry

The flute count and geometry play pivotal roles in the performance of end mills:

• Flute Count: Determines how much material can be removed at once and influences the finish quality. Lower flute counts (2-3 flutes) are ideal for materials that form larger chips and require better chip clearance. Higher flute counts (4 or more) are suited for more complex materials with a finer finish.
• Geometry: The shape of the end mill affects its ability to cut through material smoothly and efficiently. Variable helix end mills, for example, reduce vibration during cutting, improving the tool’s lifespan and the finish quality.

The Role of End Mill Coatings in Enhancing Performance and Longevity

End mill coatings are critical for enhancing the tool’s performance and longevity. Different coatings serve various purposes:

• Titanium Nitride (TiN): Improves hardness and provides a thermal barrier, extending tool life by reducing heat buildup.
• Titanium Carbonitride (TiCN): Offers higher hardness than TiN and excellent resistance to abrasive wear, making it suitable for more rigid materials.
• Aluminum Titanium Nitride (AlTiN): Provides excellent thermal resistance and is ideal for high-temperature cutting conditions.

By carefully selecting an end mill based on its material, flute specifications, and appropriate coatings, manufacturers can significantly improve their machining efficiency, produce superior finishes, and extend the lifespan of their tools.

Practical Applications: Using End Mills in Milling Operations

Profile Milling vs Face Milling: Selecting the Right End Mill for the Job

Choosing between profile and face milling is crucial for optimizing milling applications, as each process serves distinct purposes and requires specific end mill characteristics.

• Profile Milling: The focus is on machining a part’s contour or outer shape in profile milling. This process typically requires end mills with fewer flutes (2-3) to ensure efficient chip removal and prevent heat buildup in deeper cuts. Ideal for creating complex shapes, profile milling benefits from end mills with specific geometries like variable helix angles to minimize vibration.
• Face Milling: Face milling targets the material’s surface to achieve flat finishes. This operation often involves higher flute counts (4 or more) to ensure a finer finish and improve surface quality. Face mills also typically have larger diameters to cover more surface area in a single pass, enhancing productivity.

Optimizing Milling Applications: Feed Rate, Tool Life, and Surface Finish

Optimizing feed rate, tool life, and surface finish requires a balance of several factors:

• Feed Rate: This is determined by the speed at which the end mill moves through the material. An optimized feed rate minimizes tool wear and prevents material wastage, ensuring a smooth finish. Fast feed rates can lead to increased wear and tear, whereas too slow rates may result in suboptimal cutting and decreased efficiency.
• Tool Life: Maximizing tool life involves selecting the suitable end mill (material and coatings), proper maintenance, and optimal cutting parameters. Utilizing coolant and minimizing vibration through correct tool holding and machine setup also contribute to extending tool life.
• Surface Finish: The choice of end mill, flute count, and the cutting parameters influence the achievement of a superior surface finish. Higher flute counts and specific coatings (e.g., AlTiN) are preferable for more complex materials and finishes requiring precision.

Maximizing Efficiency: Tips for Reducing Wear and Tear on Your End Mills

To extend the lifetime of end mills and maintain efficiency, consider the following strategies:

1. Proper Selection of End Mill: Choose an end mill with the appropriate material, coating, flute count, and geometry for the specific machining task.
2. Optimal Cutting Parameters: Establish cutting parameters that balance speed and efficiency without overloading the tool.
3. Use of Coolants or Lubricants: Coolants can reduce heat buildup and prevent premature wear, especially in high-temperature cutting conditions.
4. Regular Maintenance and Inspection: Regularly inspect tools for wear and damage. Sharp, well-maintained end mills perform more efficiently and produce better results.
5. Avoid Overloading: Overloading the end mill by cutting too deep or too fast can cause breakage and wear. Incremental passes may be more efficient for rigid materials.
6. Adopt High-Efficiency Milling (HEM) Strategies: HEM techniques, which involve a combination of low radial engagement and high axial cuts, can distribute wear evenly and extend tool life.

Incorporating these considerations into your milling operations can significantly improve the lifespan of your end mills, enhance milling efficiency, and achieve better results in your manufacturing processes.

Common Pitfalls and Solutions When Using End Mills

Overcoming Challenges with Difficult-to-Machine Materials

Machining difficult-to-machine materials such as titanium, Inconel, and stainless steel poses unique challenges due to their high tensile strength, abrasiveness, and heat resistance. To effectively work with these materials while maintaining end mill integrity, consider the following strategies:

• Optimize Tool Material and Coating: Use end mills made from materials like carbide or cobalt. Consider coatings such as TiAlN or AlCrN that can withstand high temperatures and reduce wear.
• Adjust Cutting Parameters: Reduce the cutting speed (RPM) to manage heat generation. Employ a higher feed rate within reasonable limits to prevent material work hardening.
• Implement a Peck Drilling Strategy for Chip Breaking: In materials that produce long, stringy chips, employ a peck drilling cycle to break chips into manageable pieces, preventing clogging and reducing tool wear.
• Control Vibration: Use tool holders with high grip strength to minimize vibration, a critical factor in premature tool wear when machining hard materials.

Preventing Common Errors: Tips for Maintaining End Mill Integrity

Maintaining the integrity of your end mills requires a vigilant approach to avoid common pitfalls. Here are strategic tips:

• Ensure Rigidity in the Setup: A rigid setup minimizes vibrations, ensuring smoother cuts and reducing the risk of end mill breakage.
• Calibrate Machine Tools Regularly: Regular calibration ensures accuracy, helping prevent errors that could lead to tool damage.
• Monitor and Adjust for Tool Deflection: Tool deflection can lead to uneven tool wear or breakage. Monitoring and making necessary adjustments can prevent these issues.
• Check and Replace Worn Components: Worn components in the tool holding system can reduce the tool’s effectiveness and increase wear. Regular checks and replacements are essential.

Adapting Strategies for Large Amounts of Material Removal

Optimizing the strategy when removing large amounts of material can mean the difference between efficient machining and costly tool replacement. Here’s how:

• Use Roughing and Finishing Strategies: Separate the process into roughing and finishing. Use more robust, possibly more extensive diameter tools for roughing to remove material quickly. Switch to finer tools for finishing operations.
• Employ High-Volume Coolant Systems: High-volume coolant systems can efficiently remove chips from the cutting area, reducing tool wear and preventing overheating.
• Opt for Chip Thinning Techniques: Chip thinning techniques allow for higher feed rates by reducing the chip load on the cutting edge, which can be particularly effective in high-feed milling operations.

By addressing these areas with specific, targeted strategies, you can enhance the performance and longevity of your end mills, even in challenging machining environments.

The Future of End Milling: Innovations and Trends

Advancements in End Mill Design: What’s Next?

Integrating computational design technologies and advanced manufacturing techniques, such as additive manufacturing, is shaping the future of end-mill design. These advancements allow for the creation of end mills with complex geometries and optimized flute designs that were previously impossible or too expensive to produce. This evolution improves chip evacuation and heat dissipation and increases tool life and performance.

The Impact of Emerging Technologies on End Milling Materials and Coatings

Emerging technologies are also revolutionizing the materials and coatings used in end-milling processes. New materials like polycrystalline diamond (PCD) and cubic boron nitride (CBN) offer enhanced wear resistance and durability. Additionally, advanced coatings, like Titanium Aluminum Nitride (TiAlN) and AlCrN (Aluminum Chromium Nitride), are being developed to withstand high temperatures and abrasive conditions, thus significantly improving the efficiency and lifespan of end mills.

How the Evolution of Milling Machines Influences End Mill Development

The rapid evolution of milling machines, particularly with the advent of high-speed machining centers and 5-axis milling machines, directly influences end-mill development. These machines demand end mills capable of operating at higher speeds without sacrificing precision or quality. Accordingly, end mill manufacturers focus on creating tools with tighter tolerances, balanced designs for reduced vibration, and features that support high-speed machining capabilities.

The intersection of these advancements presents a future where end mills are more efficient, durable, and tailored to meet the precise needs of modern manufacturing environments. The industry is moving towards an era of personalization, where tools can be customized for specific applications, materials, and machines, maximizing productivity and reducing waste.

References

1. Modern Machine Shop – “The In’s & Out’s of Ball Nose End Mills”

   • URL: [https://www.mmsonline.com]
   • Summary: This article from Modern Machine Shop provides an in-depth exploration of ball nose end mills, a subtype known for their ability to produce smooth, contoured surfaces. It delineates the design characteristics that enable this functionality, including the tool’s geometry and the impact of various cutting parameters. The discussion extends to the strategic application of ball nose end mills in 3D contouring, profiling, and complex surface machining, highlighting their advantages in achieving precision finishes. The resource is distinguished by its technical depth, offering foundational knowledge and advanced insights into optimizing tool performance.

2. Journal of Materials Processing Technology – “Effects of End Mill Helix Angle on Accuracy in Machining”

   • URL: [Unavailable due to the nature of academic databases]
   • Summary: This peer-reviewed article, featured in the Journal of Materials Processing Technology, thoroughly analyzes how the helix angle of end mills affects machining accuracy and efficiency. Through empirical research, it examines the relationship between helix angle variations and outcomes such as surface roughness, tool wear, and material removal rates across different materials. The findings contribute to a scientific understanding of end mill design parameters, offering valuable guidelines for tool selection and application in precision machining. The academic rigor and empirical data presented make this source indispensable for researchers and professionals seeking to enhance machining accuracy with end mills.

3. Sandvik Coromant – “End Mills Selection Guide”

   • URL: [https://www.sandvik.coromant.com]
   • Summary: Sandvik Coromant, a leading manufacturer of cutting tools, offers a comprehensive guide on selecting end mills tailored to novice users and experienced practitioners. The guide covers essential aspects such as end mill types, materials, coatings, and geometries, elucidating their implications for tool performance in various machining contexts. It provides application-specific recommendations, facilitating informed decision-making in tool selection to optimize productivity and achieve desired machining outcomes. This manufacturer’s website combines authoritative product information with practical application advice, making it a vital resource for understanding end mills’ broad utility and selection criteria.

Frequently Asked Questions

Q: What is an end mill, and how is it different from a drill bit?

A: An end mill is a milling cutter, a cutting tool used in industrial applications. Unlike drill bits, designed to cut holes and plunge into the material, end mills can cut in all directions for shaping, profiling, and removing material on flat and complex surfaces. End mills have a cutting end and edges along the sides, enabling them to create various shapes and features.

Q: How do I choose the right tool: a drill bit or an end mill for my project?

A: Choosing between a drill bit and an end mill depends on your project needs. Use a drill bit if you need to create accurate and cylindrical holes. Opt for an end mill for tasks involving milling, profiling, contouring, or slotting, especially for creating shapes on the surface of a material or when working on complex parts. Understanding the application’s requirements is critical to selecting the right tool.

Q: What are the different categories of end mills available?

A: End mills can be categorized based on their cutting geometry, material, and specific applications. Common types include square-end mills for creating sharp corners, ball nose end mills for milling contoured surfaces, corner radius end mills that combine the attributes of square and ball-end mills for durability and smoother finishes, and roughing end mills (hog mills) designed for removing large amounts of material quickly. They are manufactured from high-speed steel, cobalt, carbide, and tungsten carbide, each offering different durability and wear resistance levels.

Q: How does the number of flutes affect the performance of end mills?

A: The number of flutes on an end mill affects the cut’s finish and the tool’s chip removal capacity. Fewer flutes (2 or 3) allow larger chip cavities suitable for softer materials, offering better chip removal and cooling. More flutes (4 or more) create a finer finish by reducing chip load and increasing cutting speed, ideal for more rigid materials. The right choice depends on the material being milled and the desired finish.

Q: When should I use carbide end mills over high-speed steel (HSS) ones?

A: Carbide end mills, particularly those made from solid carbide or with tungsten carbide coatings, are preferred for their superior wear resistance and durability compared to high-speed steel (HSS) mills. They retain their cutting-edge hardness at high machining temperatures generated by high cutting speeds, making them suitable for high-volume production and milling hard materials. However, HSS end mills may be more cost-effective for softer materials or less demanding applications.

Q: What is the best end mill for producing a flat surface?

A: The best end mill for producing a flat surface is typically a square end mill. Square end mills have flutes with sharp corners that make a flat-bottomed groove with a sharp corner. They are excellent for plunge cutting and producing precise square corners in the part. When high-quality surfaces are required, finishing end mills with more flutes and a finer pitch can be used after roughing to achieve a smoother finish.

Q: Can you explain using an end mill in a drill press?

A: Using an end mill in a drill press is generally not recommended. Drill presses are designed for vertical loading, as seen in drilling operations, and lack the necessary Rigidity and side load handling for the lateral forces generated in end milling. Additionally, many drill presses do not have the speed variability or spindle support that milling machines offer. For proper milling operations, a machine is required to ensure your tools and machines’ accuracy, safety, and longevity.

Q: How do I extend the life of my end mills?

A: Extending the life of end mills involves proper use and maintenance. Choose a suitable end mill for the material and task. Utilize appropriate cutting speeds and feeds to minimize wear and prevent tool failure. Properly securing the workpiece and the mill cutter can reduce vibrations that lead to wear. A suitable coolant or cutting fluid can keep the cutting edge cool and lubricated. Regularly inspecting and maintaining your milling machine for precision and alignment is crucial for extending tool life.
