Graphite is widely used in high-precision machining fields such as mold manufacturing, EDM electrodes, and semiconductor packaging due to its excellent conductivity and high-temperature resistance. However, graphite materials are highly brittle and strongly abrasive, placing higher demands on the wear resistance and machining efficiency of cutting tools. Among the various graphite milling tools available, diamond coated end mills have emerged as the preferred solution thanks to their exceptional wear resistance, thermal stability, and superior surface treatment performance.
Compared with traditional carbide tools or uncoated graphite-specific end mills, diamond-coated tools maintain a significantly longer service life in high-speed dry cutting environments while effectively minimizing tool chipping and burr formation. These end mills not only improve machining efficiency but also reduce downtime costs caused by frequent tool changes. Especially in demanding applications such as complex 3D surfaces, fine cavities, and electrode microstructures, diamond-coated tools have become a standard choice among high-end CNC machining companies.
Challenges and Characteristics of Graphite Machining
Graphite is a unique non-metallic material with widespread applications in mold making, EDM electrodes, and high-temperature structural components. However, its specific machinability characteristics pose unique challenges. To achieve efficient and precise graphite milling, manufacturers must fully understand graphite’s material properties and their impact on tool selection and processing strategies. When using graphite milling tools, special attention must be paid to tool wear, dust control, and surface finish quality.
Physical Properties of Graphite Materials
Graphite exhibits high brittleness, low density, excellent thermal conductivity, and high-temperature resistance. These properties cause it to fracture easily during cutting, producing powdery chips rather than continuous ones. While this facilitates dry machining and efficient chip removal, it also demands higher sharpness and stability from the cutting tool. Additionally, graphite generates a significant amount of fine dust during milling, which can contaminate machine environments and damage spindles and internal components. Therefore, a well-designed graphite end mill combined with a vacuum dust collection system is critical.
Effect of Graphite on Tool Wear
Graphite’s abrasive nature leads to rapid wear of the tool’s rake face and cutting edges, causing chipping, poor surface finishes, and dimensional inaccuracies. In high-speed, high-feed CNC machining, tool longevity becomes a central factor in cost control. Standard carbide tools often fall short in long-term graphite milling. In contrast, diamond-coated end mills for graphite deliver superior wear resistance, extending tool change intervals and maintaining cutting stability.
Limitations of Traditional Tools in Graphite Machining
Uncoated or conventionally coated tools (e.g., TiAlN) often suffer from short lifespans, poor surface finishes, and edge chipping when used on graphite. These issues are exacerbated in dry cutting environments, where heat buildup and dust clogging degrade tool performance and compromise dimensional and surface quality. Frequent tool changes also lead to excessive machine downtime. As a result, more manufacturers are turning to diamond-coated graphite milling cutters to meet the demands of stability, durability, and precision.

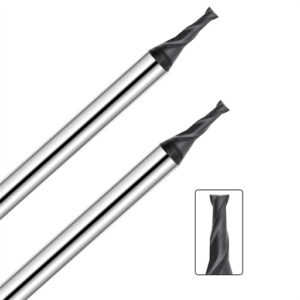

Advantages of Diamond-Coated End Mills
In graphite machining, diamond-coated end mills have become essential tools for boosting productivity and controlling operating costs. Compared to conventional carbide or uncoated tools, diamond-coated tools offer higher wear resistance, longer life, and stable performance in high-speed, dry-cutting environments.
Exceptional Wear Resistance and Longevity
Diamond coatings possess extremely high hardness and chemical inertness, allowing them to dramatically reduce edge wear when machining abrasive materials like graphite. Compared to standard graphite end mills, diamond-coated tools can last 3 to 10 times longer, making them ideal for extended production runs.
These coatings also exhibit outstanding thermal stability, enabling them to withstand high cutting temperatures without deforming or chipping. This durability translates into lower tool replacement frequency, reduced downtime, and greater cost-efficiency.
Improved Surface Quality with Fewer Burrs and Chips
Graphite’s brittleness makes it prone to edge chipping and burr formation, which can degrade surface finish and part integrity. Diamond-coated tools maintain sharper, more stable cutting edges that reduce these issues significantly. This results in smoother, more consistent surfaces.
In precision applications such as mold cavities, electrodes, and IC packages, high-quality graphite milling tools enhance product yields and minimize the need for post-machining hand finishing, thereby improving overall productivity.
Optimized for High-Speed Dry Cutting
Since graphite is typically machined without coolant to avoid material contamination, thermal management is crucial. Diamond coatings feature low friction coefficients and excellent thermal stability, making them ideal for high-speed, dry machining environments.
Using diamond-coated end mills for graphite processing reduces dust adhesion, machine wear, and thermal deformation, all while maintaining high cutting speeds and dimensional accuracy. These benefits align perfectly with the requirements of modern CNC machining operations.
Why Choose Diamond-Coated Graphite Milling Cutters?
When machining highly abrasive graphite materials, tool selection directly impacts productivity, part quality, and overall manufacturing costs. Diamond-coated end mills deliver clear advantages in longevity, surface quality, and precision—meeting the evolving demands of advanced CNC environments.
Comparison with Standard Graphite Milling Tools
Conventional graphite tools, often made of tungsten carbide with TiN or TiAlN coatings, offer limited durability and tend to chip quickly under heavy graphite dust and repeated high-frequency cuts. These issues result in uneven finishes and shortened tool life.
In contrast, diamond-coated graphite end mills deliver better wear resistance and retain sharp cutting edges over extended operations. Even during long, continuous machining sessions, they maintain consistent dimensional tolerances and superior surface quality—making them a more reliable choice for graphite milling.
Extended Tool Life Through Diamond Coating
As a superhard material, diamond offers unmatched surface hardness and heat resistance. When applied as a coating, it significantly slows the wear rate of tool edges, especially during aggressive graphite machining. Field reports consistently show tool life improvements of 3 to 10 times compared to conventional tools.
Fewer tool changes mean reduced downtime, stable part quality, and lower overall tooling costs—ideal for high-volume CNC production and automated machining lines.
Superior Results in Precision Mold and Electrode Work
Diamond-coated graphite tools excel in applications that require tight tolerances and clean surface finishes, such as EDM electrodes and mold cavities. These processes demand precise geometry retention and edge stability.
Even in deep cavities or detailed structures, these tools minimize common defects like edge chipping or detail loss, helping maintain mold integrity and reduce the need for secondary finishing. The result is higher productivity and a more streamlined manufacturing process.
How to Select the Right Diamond End Mill for Graphite
Choosing the right diamond-coated end mill involves more than just selecting a coating. To achieve optimal performance, manufacturers should consider tool geometry, coating type and thickness, tool size, and the number of flutes. The following are key considerations when selecting graphite end mills.
Tool Geometry Design Considerations
Tool geometry directly influences cutting performance and finish quality. Optimized rake angles improve sharpness and reduce cutting resistance, minimizing edge damage. Proper chip flute design ensures efficient dust evacuation and prevents chip accumulation that can raise local temperatures.
Back and helix angle configurations affect blade strength and vibration resistance—critical for tools used in high-speed, abrasive graphite machining. Balancing these factors ensures the tool withstands operational stresses while delivering clean, accurate cuts.
Choosing the Right Coating Type and Thickness
Diamond coatings come in several forms, such as CVD (chemical vapor deposition) and PCD (polycrystalline diamond). CVD coatings are thicker and suitable for roughing operations due to their durability and thermal stability. PCD tools offer sharper edges, making them ideal for fine-detail and ultra-precision machining.
Coating thickness also matters. Thicker coatings improve wear resistance but may reduce cutting sharpness. Thinner coatings enhance edge acuity but have shorter life spans. For prolonged dry cutting, choose a well-adhered, uniform diamond coating with high bonding strength to avoid delamination or cracking at high speeds.
Matching Tool Diameter and Flute Count
Tool diameter and flute count influence the balance between efficiency and surface finish. Smaller diameters are ideal for intricate features and fine details but are more prone to breakage. Larger tools provide greater rigidity and are better suited for roughing operations.
Two-flute tools are effective in dusty environments due to better chip evacuation and reduced heat buildup. Three- or four-flute tools are preferable for high-feed, precision cutting, offering better surface quality and dimensional consistency. The right combination enhances productivity and extends tool life.
The Key to Improving Graphite Machining Efficiency
In today’s precision-focused and high-efficiency CNC machining landscape, effectively processing abrasive materials like graphite requires advanced tooling solutions. As this article has shown, diamond-coated end mills for graphite are not only a proven method for enhancing machining efficiency but also a strategic choice for long-term cost reduction and quality assurance.
The Necessity of High-Performance Graphite Milling Tools
Graphite’s high hardness and abrasiveness pose serious challenges for traditional tools, which often suffer from chipping, rapid wear, and inconsistent dimensional results. High-performance graphite end mills—especially those with CVD diamond coatings—offer the stability and reliability required for demanding applications in mold making, electrode fabrication, and IC packaging.
Well-matched cutting geometries, flute counts, and coating types enable clean machining, reduced dust accumulation, and longer equipment lifespan—even under high-speed dry cutting conditions.
A Smart Investment for Long-Term Cost Savings
While diamond coated graphite milling tools may carry a higher upfront cost, their extended service life, reduced tool change frequency, and improved yield rates dramatically reduce the overall cost per part.
In mass production or automated environments, these tools enhance throughput, minimize rework and maintenance, and support sustainable profitability. Ultimately, choosing diamond-coated end mills is a wise investment in both performance and cost efficiency for modern graphite machining.
