Understanding Diamond End Mills: Applications and Advantages

In modern high-precision machining, diamond end mills are increasingly favored for their outstanding wear resistance and superior cutting performance—especially when working with hard and brittle materials. From dry cutting of ceramics, graphite, and glass fiber-reinforced plastics (GFRP) to high-efficiency mold manufacturing and composite machining in aerospace, diamond end mill cutting tools offer clear advantages. In applications that demand extreme edge accuracy and extended tool life, diamond cutter end mills help reduce tool change frequency and lower overall machining costs.

To meet diverse machining needs, the market offers a variety of diamond cutting tools, including CVD diamond-coated tools, PCD-tipped end mills, and carbide-based diamond end mill cutters. Each type delivers unique performance benefits under specific conditions. For example, when machining ceramic components, a specialized diamond end mill for ceramic delivers exceptional surface finish and minimal tool wear—making it indispensable for precision ceramic machining.

What is a Diamond End Mill?

With rising demands for machining high-hardness, brittle materials like ceramics, graphite, and CFRP, traditional carbide tools often fall short in long-term, high-accuracy operations. Diamond end mills, with their extreme hardness, superior thermal stability, and exceptional wear resistance, have become a mainstay in high-end precision machining. Industries such as electronics, aerospace, mold manufacturing, and advanced ceramics increasingly rely on diamond end mill cutting tools to improve productivity, extend tool life, and maintain surface quality.

Introduction to Diamond End Mills

A diamond end mill is a high-performance cutting tool featuring synthetic or natural diamond material either plated or sintered onto the cutting edge. These tools are ideal for machining materials that are difficult or impossible to cut with conventional tools. Diamond end mills are typically classified into CVD diamond-coated, PCD diamond end mills, and solid (integral) diamond tools. These cutters provide outstanding performance when working with graphite electrodes, ceramics, silicon wafers, and hard composites. In high-speed dry cutting, diamond end mills deliver superior results with minimal edge buildup.

Common Terminology: Diamond End Mill Cutter vs. Diamond End Mill Cutting Tools

While often used interchangeably, diamond end mill cutter typically refers to the individual tool, whereas diamond end mill cutting tools can encompass a broader category including various diamond-tipped or diamond-coated end mills. Understanding this distinction is helpful for procurement, tooling inventory, and engineering documentation.

Main Types of Diamond Tools: Welded, Coated, and Integral

Depending on their structure and manufacturing process, diamond end mills fall into three main categories:

• PCD Diamond End Mill: This tool uses a polycrystalline diamond tip brazed onto the carbide body. It’s ideal for continuous, high-strength cutting applications like metal matrix composites (MMC) or silicon-aluminum alloys.

• CVD Diamond Coated End Mill: A thin layer of microcrystalline or nanocrystalline diamond is deposited onto a carbide substrate. These tools are excellent for graphite machining, mold milling, and electrode manufacturing, offering precision and cost-efficiency. This design represents a typical carbide diamond end mill cutter.

• Integral Diamond End Mill: Entirely made of solid diamond or sintered PCD, these are used in ultra-precision or micro-scale machining. Though costly, they offer unmatched tool life and dimensional stability.

Choosing the correct diamond tool structure dramatically impacts productivity and tool wear—especially in applications like high-finish ceramic machining, where using a diamond end mill for ceramic significantly improves consistency and lifespan.

Main Types and Structural Characteristics of Diamond End Mills

Diamond end mills vary in structure based on manufacturing technology, cutting geometry, and target application. Proper selection not only improves performance but also reduces operational costs. When working with abrasive, brittle, or hard materials, tool structure becomes a critical factor.

Coated Diamond End Mills

These are the most widely adopted diamond tools. By applying a CVD diamond coating onto a carbide substrate, these tools offer a balance of strength and wear resistance. Ideal for non-metallic materials like graphite, GFRP, and ceramics, coated tools maintain edge sharpness and resist thermal deformation.

Long-tail keyword examples:

• Diamond coated end mill for graphite

• High-speed dry cutting with CVD diamond end mill

Coated tools are cost-effective solutions where prolonged precision is essential. In graphite electrode manufacturing, for example, they significantly reduce built-up edge formation and deliver extended tool life without requiring coolant.

PCD Diamond Cutter End Mill

PCD tools feature sintered polycrystalline diamond tips, offering superior toughness, thermal stability, and anti-adhesion properties. This makes them perfect for non-ferrous metals, CFRP, aluminum alloys, and copper alloys. Their durability supports mass production and long-cycle machining in industries like automotive, aerospace, and electronics.

Carbide Diamond End Mill Cutter

These tools feature a carbide core with diamond coating, offering a combination of stiffness, wear resistance, and precision. They’re especially effective in applications such as:

• Ceramic microstructure machining

• High-speed PCB milling

• Semiconductor packaging mold processing

This hybrid design is a common solution for diamond end mill for ceramic use cases, especially when dimensional accuracy and tool life are top priorities.

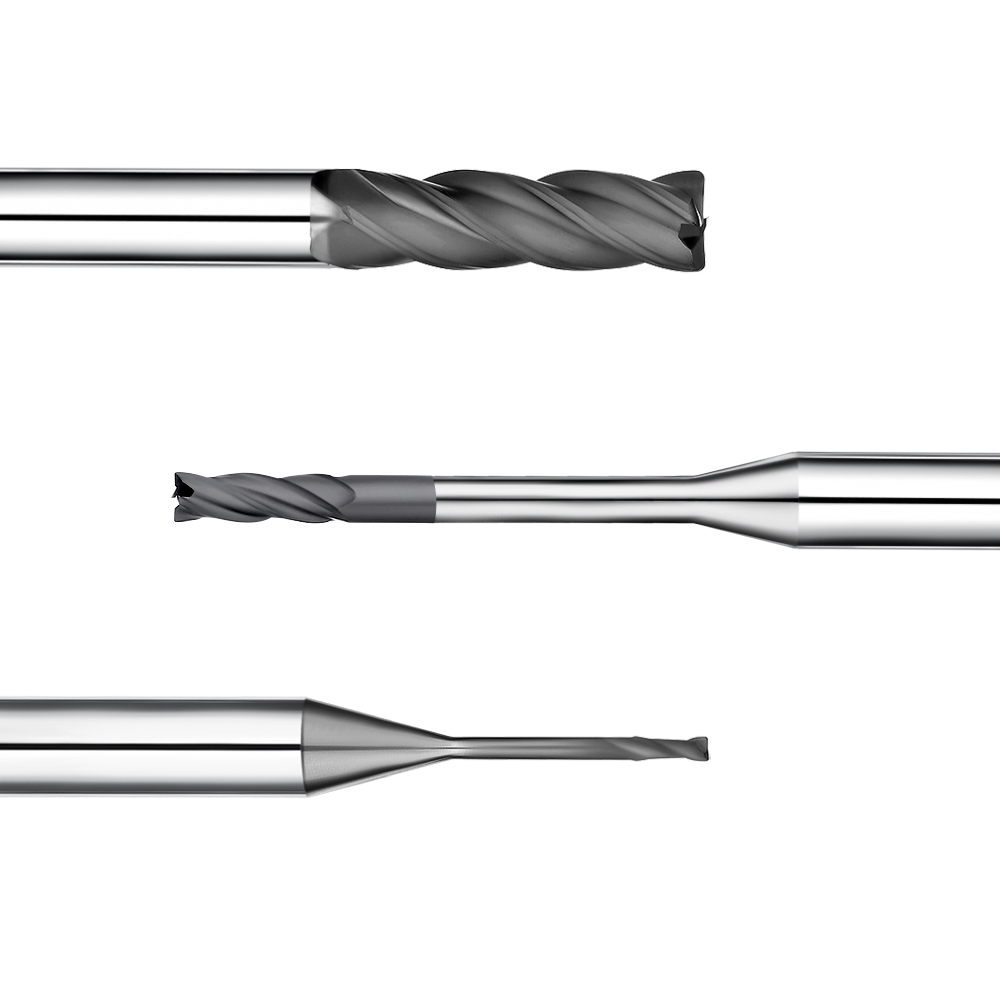

Specialized Tools: Micro and Long-Neck Diamond End Mills

Micro and long-neck tools meet the demand for complex cavity milling, deep pocket machining, and fine micro features. Micro diamond end mills (0.1–1mm diameter) are essential for IC substrates, glass panels, and ceramic vias. Long-neck variants allow for extended reach without sacrificing rigidity—key in precision mold making and medical part milling.

Typical Application Scenarios of Diamond End Mills

With the increasing requirements of precision manufacturing for processing efficiency, dimensional stability and surface quality, diamond end mills have been widely used in many key fields. Especially in the processing of high-hardness and brittle materials, high-abrasive non-metallic materials and composite materials, traditional tools are prone to rapid wear, poor surface quality and high processing costs. Diamond end mill cutting tools have become an ideal solution with their superhard characteristics and excellent wear resistance.

The Go-To Tool for Ceramic Machining: Diamond End Mill for Ceramic

Ceramic is a typical high-hardness and brittle material, which is widely used in aerospace, electronic packaging, biomedicine and other fields. However, it has high hardness and high brittleness, and it is very easy to produce defects such as cracks and edge collapse during processing, which requires extremely high tool performance. Compared with traditional carbide tools, diamond end mill for ceramic has higher wear resistance and cutting stability, which can effectively extend the tool life while maintaining high processing accuracy.

For different types of ceramics (such as aluminum oxide, silicon nitride, zirconium oxide, etc.), diamond milling cutters with different structures can be selected. For example, the coated diamond end mill using CVD coating technology is suitable for occasions with high surface finish requirements. The PCD diamond cutter end mill is suitable for batch applications with continuous and high-speed cutting.

Graphite Electrode and Mold Manufacturing

Graphite has excellent conductivity and thermal stability, and is the preferred material for the manufacture of EDM electrodes. However, due to its loose internal structure and strong wear resistance to tools, traditional tools often cannot maintain accuracy for a long time during the processing process. Diamond end mill for graphite, with its extremely low friction coefficient and excellent wear resistance, can achieve high-speed dry cutting without the use of coolant, effectively control dust diffusion and extend the equipment maintenance cycle.

In addition, in the field of precision mold manufacturing, such as die-casting molds, plastic molds and IC packaging molds, diamond tools can achieve high-finish, high-precision complex cavity milling, and are irreplaceable high-end cutting tools in fine mold processing.

Machining of Glass Fiber and Carbon Fiber Composites

With the widespread application of composite materials in aerospace, rail transportation, medical equipment and other fields, how to process GFRP and CFRP efficiently and non-destructively has become a manufacturing difficulty. The fiber components mixed in this type of material are extremely serious for tool wear, and it is easy to produce defects such as delamination and wire drawing during processing.

Diamond end mill cutting tools have the characteristics of high hardness, low friction and high thermal conductivity, which can effectively reduce heat accumulation and edge burrs when cutting composite materials and improve processing quality. According to the different characteristics of composite materials, carbide diamond end mill cutter can be selected for high-intensity cutting, or PCD tools can be used for high-speed contour milling, taking into account efficiency and precision.

High-Efficiency Machining of Other Brittle Materials

In addition to ceramics, graphite and composite materials, diamond end mills are also widely used in the high-precision manufacturing of difficult-to-process materials such as sapphire, glass, sintered carbide, semiconductor wafers, ceramic circuit boards, etc. These materials are often used in high-value-added industries such as electronic devices, LED packaging, and medical micro-components, which put forward extremely high requirements on the cutting performance, processing consistency and life of the tools.

In these ultra-precision scenarios, micro diamond end mills are often used for cutting micro grooves, micro cavities and special-shaped contours, and the tool diameter can be as small as 0.1 mm or less. Combined with the long neck structure design, high-precision contour processing of deep cavities can be achieved, avoiding the errors caused by secondary clamping of the workpiece, and improving the overall processing efficiency and yield rate.

Diamond End Mill Selection Tips

Reasonable selection is the premise for ensuring the best processing performance of diamond end mills. Different types of materials, processing conditions and equipment parameters have different requirements for tool structure, coating method and substrate material. If these details are ignored, it may lead to premature failure of the tool, substandard surface quality and even scrapped workpieces. Therefore, formulating a scientific selection plan based on factors such as material properties, processing depth, and precision requirements is the key to ensuring processing efficiency and stability.

How to Select the Right Diamond End Mill Cutter by Material

Material type is the primary consideration for selection. Diamond tools are mainly used for processing non-metallic high-hardness materials or easily abrasive materials, such as ceramics, graphite, glass fiber, CFRP, aluminum alloy, etc. For different materials, the following selection strategies are recommended:

• For brittle non-metallic materials such as ceramics, glass, and sapphire: it is recommended to use diamond end mill for ceramic with ultra-fine particle CVD coating, which has higher wear resistance and thermal stability.
• Graphite electrodes and carbon-based materials: suitable for using diamond end mill cutters with large chip groove design and sharp cutting edges to achieve high-speed dry cutting effects.
• Carbon fiber and glass fiber composite materials: It is recommended to use carbide diamond end mill cutters with sharp cutting edges and heat-resistant diamond coatings to effectively avoid delamination and burrs.
• Aluminum alloys and non-ferrous metals (such as copper and magnesium): PCD diamond cutter end mills can be given priority, with good anti-adhesion and mirror processing capabilities.

Reasonable selection of tool diameter, blade length, number of blades and shank diameter is also an important factor affecting processing stability and tool life, especially in micro-machining or deep cavity contour processing. Strict matching is required.

Matching Coating and Substrate for Optimal Performance

The performance of diamond end mills depends not only on the hardness of the diamond itself, but also on multiple factors such as coating adhesion strength, substrate rigidity and thermal conductivity. Common substrate materials are cemented carbide and HSS, and the coating methods are mainly CVD and PCD welding or sintering technology.

The matching principles are as follows:

• High hardness materials (ceramics, glass): A combination of high adhesion CVD diamond coating + carbide substrate should be selected to improve the overall wear resistance.
• High thermal conductivity materials (graphite, aluminum): It is suitable to select ultra-fine particle tungsten carbide substrate with good thermal conductivity to maintain cutting thermal balance and avoid overheating and chipping of the tool.
• Composite material processing: While ensuring the strength of the tool, a diamond coating with a low friction coefficient should be selected to reduce sticking, delamination and wear.

This type of material-structure-coating combination optimization design concept can maximize the service life of diamond end mill cutting tools and improve the processing quality.

Precautions When Using Diamond Tools

Although diamond end mills have super wear resistance and extremely long service life. However, if their characteristics and process adaptation are ignored during use, the tool performance may not be fully utilized, or even premature damage may occur. The following suggestions will help users better master the operating skills of diamond end mill cutting tools, thereby extending the tool life while improving processing efficiency and surface quality.

Cutting Parameters and Speed Settings

The performance of diamond tools is highly dependent on reasonable cutting parameter settings. Due to its extremely high hardness and strong thermal conductivity, but relatively weak impact resistance. Therefore, it is not suitable for high-impact, high-feed roughing environments. The following are key parameter recommendations:

• RPM: For materials such as graphite and ceramics, it is recommended to use high speed (>15,000 RPM) during processing to achieve stable cutting. For non-ferrous metals such as aluminum alloys, the speed can be appropriately reduced when using PCD diamond cutter end mill to control the tool heat load.
• Vc: Controlled in the range of 100–1000 m/min according to the hardness of the material. It is recommended to use medium-high speed cutting for composite materials to reduce burrs and delamination.
• Feed Rate: Usually controlled in the range of 0.02–0.08 mm/tooth to avoid excessive feed causing edge cracking or thermal cracking.
• Ap: It is recommended to focus on light cutting, and the depth of cutting should not exceed 1/2 of the tool blade length, keep the load even, and prevent the micro-edge from wearing too fast.

Special reminder: When using micro or long-necked diamond end mills (such as processing deep-cavity ceramics, quartz glass, etc.), it is necessary to control the feed path and spindle stability to avoid excessive lateral force causing tool breakage.

How to Extend Diamond End Mill Tool Life

Although diamond tools themselves have extremely high wear resistance, their impact resistance is low, so the length of tool life depends largely on reasonable operating specifications and equipment status:

• Preferentially used in continuous cutting environments to avoid intermittent cutting and frequent reversing causing edge impact.
• Use high-precision, high-rigidity spindle equipment to reduce tool vibration and runout errors.
• Maintain sufficient clamping force on the tool holder to avoid micro-motion wear, especially under high-speed spindle conditions.
• Control the cutting temperature to minimize thermal stress concentration without affecting material properties, and avoid coating peeling or tool thermal fatigue.
• For materials that are prone to powder loss or carbon deposition (such as graphite and carbon fiber), it is recommended to use diamond end mill for graphite products with dust collection or vacuum devices to reduce the wear and pollution of dust back to the tool.
• Regularly check the wear state of the tool edge, and replace it in time when there is a slight chipping or blunting phenomenon, so as to avoid excessive wear of the tool affecting the quality of the workpiece or even damaging the spindle.

Cooling and Dry Cutting Strategies

Cooling method selection directly affects tool performance and thermal control. Strategies should vary depending on the material:

• Graphite, Ceramics, Glass
  Use high-speed dry cutting with directional air blast to avoid coolant contamination or thermal cracking. Especially for ceramic machining, air cooling aids both chip evacuation and thermal management.

• Aluminum and Non-Ferrous Metals
  When using PCD end mills, apply minimum quantity lubrication (MQL) or cold air systems to reduce chip adhesion and enhance surface quality.

• CFRP/GFRP Composites
  Use dry machining with vacuum systems. Coolant may cause material delamination and degrade tool edges.

• Micro-Machining (e.g., semiconductors, PCB substrates)
  Opt for ultra-clean dry environments without liquid coolant to preserve precision and repeatability.

General Tip: Avoid frequent liquid cooling, which can reduce coating stability due to thermal shock. Dry or air-cooled cutting generally yields better results.

Diamond End Mills as an Ideal Choice for Advanced Manufacturing

As advanced materials become more common in aerospace, medical, semiconductor, and mold industries, conventional tools struggle to meet precision and durability demands. Diamond end mills, with their unmatched hardness, ultra-low friction, and wear resistance, are now essential tools in modern manufacturing.

Whether for ultra-finishing hard, brittle materials or maintaining consistency in high-volume production, diamond tools significantly improve surface finish, reduce tool changes, and enhance overall machining stability.

The “Hidden Champion” in Precision Machining

In high-end manufacturing, tool stability directly influences product quality and yield. PCD or CVD-coated diamond tools, such as PCD diamond cutter end mills, are increasingly used in:

• Precision Ceramic Part Machining
  Diamond end mills for ceramic minimize edge breakage and micro-cracks, ensuring surface integrity.

• Graphite Electrode and Mold Making
  These tools handle complex shapes and dust-heavy environments, maintaining performance and tool life.

• Composite Material Shaping (CFRP/GFRP)
  Carbide diamond end mills prevent delamination during precision forming in aerospace applications.

• Microscale Machining
  Their sharpness and edge retention make them indispensable for sub-micron tolerance work.

Though not always visible, these tools play a critical role as the “hidden champions” behind high-yield, high-accuracy production.

Sustainable Tooling for the Future

Diamond end mills support green manufacturing and cost efficiency through:

• Extended Tool Life
  Lasting 10–50x longer than standard carbide tools, reducing downtime and tool change frequency.

• Low Friction, Low Heat
  Enabling dry machining or MQL, reducing energy use and coolant consumption.

• Regrindability
  Some models, such as carbide or PCD diamond end mills, can be re-sharpened multiple times.

• Consistent Output
  Especially in batch processing of precision parts like ceramic substrates and silicon wafers, their accuracy boosts process stability and consistency.

FAQ

Can Diamond Cutter End Mills Machine Metals?

Yes—but only non-ferrous metals.

Diamond cutter end mills excel in high-speed cutting of aluminum, copper, magnesium, and their alloys. These materials are prone to built-up edge, which diamond’s low friction surface effectively prevents—improving surface finish and tool life.

However, diamond is not suitable for ferrous metals (e.g., carbon steel, stainless steel) because diamond reacts with iron at high temperatures, leading to rapid wear.

Typical applications:

• Finishing aerospace aluminum parts

• Copper heatsink machining

• Dry machining of magnesium alloy components

Are Carbide Diamond End Mill Cutters Suitable for High-Temperature Machining?

They offer moderate heat resistance and are best used in dry cutting under controlled temperatures.

These tools feature a carbide substrate with a CVD diamond coating, offering excellent wear resistance. However, the diamond coating is sensitive to excessive heat.

Recommendations:

• Keep cutting temperatures below 700°C to avoid coating delamination or cracking.

• Ideal for materials like graphite and ceramics where heat generation is low and dry cutting is feasible.

• For heat-generating metals, use MQL or cold air to manage tool temperature.

In short, carbide diamond end mills are not ideal for extreme temperatures but perform excellently in medium- to high-speed applications requiring surface quality and precision.

When Should You Choose a Diamond End Mill for Ceramic?

Evaluate the following before selecting a diamond end mill for ceramics:

• Material Hardness & Brittleness
  Ceramics like zirconia, silicon nitride, and alumina are hard and brittle. Diamond tools with ultra-sharp edges are ideal for preventing chipping and tool breakage.

• Surface Quality Requirements
  High-precision ceramic parts require flawless surfaces. Diamond end mills offer smooth finishes with minimal feed and high spindle speeds.

• Machine Compatibility
  Ensure your machine has high-speed spindle capabilities and stable air-cooling or dry-cutting systems.

• Tool Life and Cost Efficiency
  If frequent or repeat ceramic machining is needed, diamond tools significantly reduce per-part costs through fewer tool changes.

Typical Use Cases:

• Finishing ceramic valve plates

• Cutting zirconia dental frameworks

• Micro-hole drilling in ceramic PCBs
