2 Flutes vs 4 flutes End Mills

High Performance End Mills from China's SAMHO Manufacturer

In CNC milling, the number of flutes on an end mill plays a crucial role in cutting performance and surface finish. Among the most common options are 2-flute and 4-flute end mills, each offering distinct advantages depending on the material and application. Understanding the key differences between 2-flute vs 4-flute end mills helps machinists choose the right tool to maximize chip evacuation, improve surface quality, and boost overall machining efficiency.

Introducing 2 Flutes End Mill from SAMHO

Large chip removal space: The two cutting edges provide a larger chip removal groove, which is suitable for processing metals such as aluminum, copper, and high-hardness steel, and can effectively prevent chip blockage.

High feed rate: Compared with single-edge tools, 2-edge end mills can achieve higher feed rates and improve processing efficiency.

Suitable for roughing: 2-edge tools perform well in situations where a large amount of material removal is required.

enquiry now

Introducing 4 Flutes End Mill from SAMHO

Smoother cutting: Four cutting edges provide more continuous cutting action, reduce vibration and improve processing stability.

Excellent surface quality: The multi-edge design helps to obtain a smoother machined surface, suitable for finishing.

Suitable for hard materials: When processing hard materials such as steel, 4-edge tools can provide better tool life and cutting performance.

SAMHO'S End Mill Coating Characteristics

Coating NameHGHTHBHD
IngredientALTiSi+NALTiSi+NALTiCR+NNano Diamond
ColourBronzeBronzeDark greyDark grey
Hardness3700（HV）3500（HV）3500（HV）10000（HV）
CharacteristicsUltra high hardness, super oxidation resistance, high density.Ultra high hardness, super oxidation resistance, high density.Ultra low oxidation low frictionUltra high wear resistance
Coefficient of Friction 0.40.360.3<0.1
Oxidation Onset Temperature130012001100600
Coating Thickness2-4um2-4um2-4um6-10um

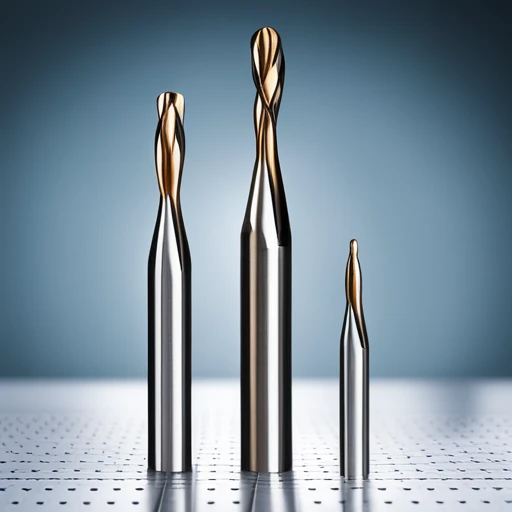

Ball Nose End Mill series

  • 2 Flutes Square End Mills Product Series

  • 2 Flutes Ball Nose End Mills Product Series

  • 2 Flutes Corner Radius End Mills Product Series

  • 4 Flutes Square End Mills Product Series

  • 4 Flutes Corner Radius End Mills Product Series

  • How to Choose 2 Flutes or 4 Flutes End Mills

Processing Target Recommended Number of Flutes Reasons
Processing of soft materials such as aluminum alloy, copper, and plastic 2 Flutes Good chip removal, anti-sticking tool, fast speed
Slotting processing 2 Flutes Large chip removal space, high cutting efficiency
Carbon steel, stainless steel, alloy steel and other hard materials 4 Flutes High strength, long tool life
Pursuing surface accuracy and finish 4 Flutes Multi-blade cutting is smoother and has finer grain
Heavy load and high-speed processing 4 Flutes（with coating） Both strength and heat resistance
enquiry now

  • 2 Flutes Flat End Mill for Hardened Steel

65HRC 2 flutes Flat end mills have the following main functions:

1. Used for finishing of high-hardness materials

Suitable for hardened steel, mold steel, stainless steel and other high-hardness materials with HRC58~65.

Especially suitable for mold processing, precision parts manufacturing and other occasions that require high tool performance and wear resistance.

2. High-precision cutting and excellent surface quality

The two-edge design means large chip removal space, suitable for high-speed, low-feed finishing in high-hardness materials.

Can provide smooth machining surface under MQL conditions.

3. Suitable for side milling, cavity processing and linear cutting

Usually used for processing methods such as grooving, side milling, contour or mold cavity.

Because the rigidity of two-edge tools is relatively weak, they are generally not used for heavy cutting or rough machining.

  • 2 Flutes Ball Nose End Mill for Hardened Steel

HRC65 2 flutes ball milling cutter has 4 major advantages in processing heat-treated steel:

1. High-hardness substrate, specially made for heat-treated steel: usually using micro-tungsten carbide as the substrate, with excellent red hardness and wear resistance, suitable for processing mold steel, tool steel and other heat-treated steels above 60HRC.

2. 2-edge structure optimizes chip removal and cutting stability: especially suitable for surface finishing, local chamfering or edge root cleaning and local chamfering or edge root cleaning.

3 High-precision blade design to improve surface quality: using advanced five-axis grinding technology, the tool tip accuracy is controlled within ±0.005mm.

4. Applicable to a variety of heat-treated steels, strong processing adaptability: such as SKD11, H13, etc.

  • 2 Flutes Corner Radius End Mill for Heat Treated Steel

HRC65 2 Flutes rounded corner end mill performs well in processing heat-treated steel:

Strengthen the cutting edge design and improve the ability to resist chipping
Compared with ordinary flat-bottomed cutters, the bull nose structure can effectively reduce the stress concentration at the tip of the cutter and reduce the risk of cutting edge chipping, which is particularly suitable for processing high-hardness steel and other materials that are easily damaged by cutting tools.

Advantages of the 2 flutes structure: Larger chip space and improved chip removal efficiency
The 2 flutes design has a wider chip groove, smooth chip removal, and less cutting resistance, which helps to maintain stable cutting and lower cutting temperature in high-hardness steel processing and extend tool life.

Suitable for high-speed cutting and hard processing strategies
In the processing of high-hardness heat-treated steel, most of the processing strategies used are high-speed, small cutting depth, and high feed. 2 flutes rounded corner cutters can support higher speeds. After matching the coating, they have stronger heat resistance and wear resistance, and are suitable for dry cutting or minimal lubrication.

Suitable for finishing and semi-finishing
Since the rounded corner structure can maintain the edge strength while ensuring the quality of the processed surface, it is particularly suitable for cavity processing, bevel processing or surface contour finishing of mold steel materials.

  • 4 Flutes Square End Mill for Hardened Steel

SAMHO HRC65 4-edge flat end mill has excellent performance in processing heat-treated steel:

High hardness adaptability: Designed for processing heat-treated steel above 60HRC, the tool has high overall hardness and excellent wear resistance.

4-edge design improves efficiency: Multi-edge design achieves higher feed rate and cutting efficiency, suitable for efficient semi-finishing and finishing.

High-quality coating protection: High-performance coating is used to significantly improve heat resistance and oxidation resistance, and extend service life.

High cutting stability: The tool has strong rigidity and optimized geometric angles, maintaining good surface quality and dimensional accuracy in high-hardness steel cutting.

Adaptable to high-speed dry cutting: Suitable for high-speed machine tools, flexible cooling method, dry cutting or minimal lubrication.

  • 4 Flutes Bull Nose End Mill for Hardened Steel

HRC65 4-Flutes Corner Radius End Mill’s performance in processing heat-treated steel:

Excellent wear resistance: Using high-hardness tungsten steel substrate + high-performance coating, it can still maintain a sharp cutting edge under high temperature and high pressure, effectively extending the tool life.

Rounded corner design improves tool strength: The 4-flutes rounded corner design can effectively reduce stress concentration and reduce the risk of chipping during processing, and is particularly suitable for finishing or semi-finishing of high-hardness materials.

Efficient chip removal and high surface quality: The 4-flutes structure takes into account both feed efficiency and cutting stability, and can obtain better surface roughness (Ra 0.2 or less or even close to mirror surface) at a stable cutting depth, which is suitable for finishing mold workpieces.

Adapt to high speed and oil mist/dry cooling: With high-rigidity machine tools and oil mist cooling systems, high-speed, small cutting depth and high-precision cutting can be achieved.

  • HRC55 2 Flutes End Mills Processing Carbon Steel

Performance of HRC55 2-flute end mill in processing carbon steel:

Sharp Cutting Edge, Suitable for Processing Medium and Low Hardness Carbon Steel
HRC55 2-flute end mill mostly uses ultra-fine tungsten steel matrix, with moderate heat treatment hardness, and has certain strength and toughness. It is particularly suitable for processing common carbon steel materials of 30~45HRC, and can effectively avoid “sticking tool” or “built-up edge” during processing.

2-flute Structure Facilitates Chip Removal and Improves Surface Quality
Compared with 4-flute or multi-flute tools, the 2-flute design has a large chip removal space, which is conducive to maintaining the temperature of the cutting area stable, reducing burns and burrs on the workpiece surface, and improving the surface finish of the processed surface. It is suitable for roughing and shallow grooving.

Strong Compatibility and Flexible Processing Methods
Applicable to a variety of working conditions, such as end milling, side milling, shallow hole processing, etc. It can be used with water cooling/oil cooling, or dry cutting or air cooling under medium speed conditions.

Suitable for Cost-effective Scenarios
HRC55 carbide end mills are more cost-effective than HRC60/65 high-end tools, and are particularly suitable for small and medium-sized batch processing or application scenarios with moderate life requirements, such as general mechanical parts and structural parts processing.

  • HRC55 4 Flutes End Mills Processing Mild Steel

Material Specific HRC55 End Mills

HRC55 hardness grade positioning:

Applicable to soft steel (such as copper, low carbon steel, carbon steel, alloy steel, stainless steel, etc.) and some pre-hardened steel.

Provides reasonable cost performance, suitable for scenarios that require a balance between wear resistance and toughness in daily processing tasks.

Advantages of 4-edge design:

The multi-edge structure improves the metal removal rate (MRR) per unit time, suitable for semi-finishing and finishing.

High edge strength, suitable for workpieces with high surface quality requirements.

More suitable for continuous cutting scenarios such as side milling and contour milling.

Chip removal capacity and groove optimization:

In view of the characteristics of soft steel that is easy to stick to the tool and has large cutting products, appropriate groove angles (U-shaped chip removal grooves) or high helix angle designs should be used to avoid built-up edge affecting surface quality.

Coating selection (if not specifically stated, it is recommended to highlight whether there is a coating):

If HB series or other high-performance coatings are used, their improvement in soft material processing in terms of anti-adhesion and wear resistance should be emphasized.

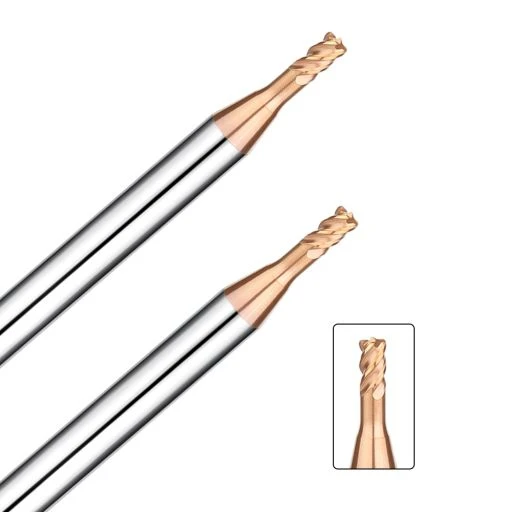

  • HRC65 2-Flute & 4-Flute Long Neck End Mills for Pre-Hardened Steel

Exceptional Thermal Stability and Wear Resistance

Crafted from HRC65-grade solid carbide and enhanced with an advanced HG coating, these end mills offer outstanding red hardness and wear resistance during extended cutting operations. They are specifically engineered to withstand continuous machining of pre-hardened steels without premature wear or chipping.

Optimized for Deep Cavities and High-Wall Applications

The long neck design provides extended reach and an effective cutting length, making these tools ideal for deep cavities, narrow slots, internal corners, and intricate mold features. This geometry ensures efficient chip evacuation and minimizes tool interference in confined machining environments.

Tailored Flute Designs for Different Machining Needs

  • 2-Flute Design: With larger flute volume, the 2-flute version excels in roughing and mixed-material machining. It performs exceptionally well in semi-enclosed deep cavities, enabling smooth chip evacuation and reducing the risk of built-up edge or tool sticking.

  • 4-Flute Design: Better suited for finishing and profile milling, the 4-flute tool delivers superior surface finish and dimensional accuracy, particularly in the final contouring of pre-hardened steel mold components.

Precision Tolerances for Stable, High-Accuracy Machining

Shank tolerance is maintained within 0 to +0.003 mm, and cutting diameter tolerance is controlled within 0 to +0.01 mm. This ensures perfect compatibility with high-precision tool holders (e.g., BT, HSK, SK), significantly reducing vibration and runout for consistent performance on high-rigidity materials like pre-hardened steels.

Coating and Sharpness Combined for Extended Tool Life

The advanced coating not only resists high-temperature oxidation but also enhances lubricity. When combined with precision-ground cutting edges, it extends tool life, improves surface finish, and ensures excellent dimensional stability—critical for demanding mold and die applications.

  • HRC65 2-Flute & 4-Flute End Mills for Powder Metallurgy Steel

Exceptional Hardness and Thermal Stability for Demanding Applications

Powder metallurgy (PM) steels—such as ASP23, PM M4, and other high-speed powder steels—are known for their high hardness, wear resistance, and alloy content. These properties pose significant challenges for cutting tools.
HRC65-grade carbide end mills, combined with high-performance HG coatings, maintain edge sharpness and oxidation resistance in high-temperature environments. This ensures extended tool life while minimizing chipping and coating delamination during heavy-duty cutting.

Tailored Flute Designs for Roughing and Finishing

  • 2-Flute End Mills provide large chip evacuation capacity, making them ideal for roughing and interrupted cuts in PM steel. Their open flute design helps reduce chip clogging, cutting forces, and heat buildup.

  • 4-Flute End Mills are better suited for semi-finishing and finishing operations. They offer higher edge strength and a more stable cutting path, making them ideal for fine contouring and achieving superior surface finish on hardened mold components.

High Chipping Resistance for Tough Alloy Structures

PM steels typically contain a high concentration of hard carbides (e.g., vanadium carbide VC, molybdenum carbide MC), which can create micro-impacts on the tool edge.
HRC65 end mills are precision-ground using CNC grinding machines and feature micro-edge honing. This improves chipping resistance and tool edge integrity, which is essential for processing highly abrasive and hard alloy steels.

Precision Tolerances for Enhanced Rigidity and Dimensional Stability

Shank tolerance is controlled within 0 to +0.003 mm, ensuring a secure fit with high-precision tool holders such as BT and HSK systems. Cutting diameter tolerance is maintained within 0 to +0.01 mm, supporting excellent surface finishes and dimensional accuracy in complex geometry machining of PM steels.

Optimized for High-Speed and Multi-Axis CNC Machining

These HRC65-coated end mills are built to handle high-speed cutting conditions (HSM strategies) with stability. They are compatible with 3-axis and 5-axis CNC machining centers, making them ideal for mold steel components, precision die inserts, and intricate cavities in powder metallurgy materials. The long tool life and edge integrity support both roughing and finishing in one setup.

  • Performance of HRC65 2-Flute & 4-Flute Standard End Mills in Hardened Tool Steel Machining

Outstanding Hardness and Red-Hot Stability for High-Temperature Cutting

Hardened tool steels such as H13, D2, SKD11, A2, and S7 typically range from HRC55 to HRC60 in hardness, with high strength and excellent wear resistance.
HRC65-grade solid carbide end mills, engineered with ultra-fine grain substrates and advanced nano coatings (such as AlCrN, TiAlSiN, or the HB series), maintain cutting-edge sharpness and coating integrity under extreme heat and high-speed machining conditions. This greatly improves chipping resistance and extends tool life when processing hardened steels.

Tailored 2-Flute and 4-Flute Designs for Different Machining Stages

  • 2-Flute End Mills feature larger flute volumes, making them ideal for roughing, interrupted cuts, or deep-cavity machining where chip evacuation is challenging. They perform especially well in dry machining or applications with limited coolant access.

  • 4-Flute End Mills offer greater edge strength and improved stability, making them better suited for semi-finishing and finishing operations. They provide enhanced dimensional accuracy and surface finish—especially useful in the final stages of hardened mold and die machining.

Micro-Chamfered Cutting Edges and Precision Grinding for Enhanced Edge Strength

The dense structure of hardened steels often causes micro-vibrations and sudden impacts during cutting. HRC65 end mills undergo precision CNC grinding and micro-edge honing to strengthen the cutting edge and reduce the risk of chipping. This makes them well-suited for high-strength hot and cold work tool steels, even under demanding machining loads.

Tight Tolerances for Rigidity and Dimensional Accuracy

  • Shank tolerance is held within 0 to +0.003 mm, ensuring secure fitment with high-precision tool holders such as BT, HSK, and SK systems.

  • Cutting diameter tolerance is maintained within 0 to +0.01 mm, supporting exceptional dimensional control and surface quality—particularly valuable in die/mold applications where accuracy and repeatability are critical.

Compatible with High-Speed Machining and Multi-Axis CNC Systems

Thanks to their optimized cutting geometries and high-hardness coatings, HRC65 end mills are well-suited for high-speed machining (HSM) and multi-axis operations (3-axis, 5-axis CNC). These tools maintain excellent performance at high RPMs and feed rates, enabling efficient roughing and finishing of hardened tool steels in a single setup—reducing tool changes and overall machining time.

  • Performance of Standard 4-Flute High-Hardness End Mills in Powder Metallurgy (PM) Steel Machining

Excellent Edge Strength and Stability in Continuous Cutting

Standard 4-flute end mills feature increased cutting edge engagement and superior structural rigidity, making them ideal for continuous cutting in PM steels such as ASP23, PM M4, and high-vanadium cold work steels.
The multi-flute geometry distributes cutting loads evenly, reducing vibration and enabling consistent tool performance in long-run machining.

High Resistance to Abrasive Wear from Carbide-Rich Microstructures

Powder metallurgy steels are typically alloy-rich and contain hard carbide phases (e.g., VC, MC), which cause accelerated abrasive wear on cutting edges.
Standard 4-flute end mills with HRC65-grade fine-grain carbide and high-performance coatings (e.g., HG or HH coating) provide outstanding wear resistance under dry and high-speed cutting conditions.

Superior Surface Finish and Dimensional Accuracy

The increased number of cutting edges in 4-flute tools allows for smaller chip loads per tooth, resulting in smoother surface finishes and tighter dimensional control—especially important when machining mold inserts, precision dies, or fine-featured PM components.

Improved Heat Dissipation and Tool Life in High-Speed Cutting

Due to smaller chip sizes and increased contact, 4-flute end mills generate more heat than 2-flute designs. However, with proper coolant delivery, advanced coatings, and optimized flute geometry, they exhibit excellent thermal resistance and edge stability—critical for high-speed or dry cutting in tool steels up to HRC60–65.

Tight Tolerances for Stability and Precision Clamping

  • Shank Tolerance: 0 to +0.003 mm, compatible with high-precision tool holders (HSK, BT, SK), ensuring minimal runout.

  • Cutting Diameter Tolerance: 0 to +0.01 mm, enabling high repeatability and tight dimensional control in mold base and insert machining.

  • Performance of Standard 2-Flute High-Hardness End Mills in Titanium Alloy Machining

Optimized Chip Evacuation for Low Thermal Conductivity Materials

Titanium alloys (e.g., Ti-6Al-4V) have poor thermal conductivity and tend to retain heat at the cutting zone, which can lead to rapid tool wear and built-up edge (BUE).
The wide flute spacing of 2-flute end mills ensures excellent chip evacuation, reducing heat accumulation and tool deflection during high-load machining of titanium parts.

Reduced Cutting Forces for Thin-Wall and Difficult-to-Clamp Workpieces

The lower number of cutting edges minimizes axial and radial forces, making 2-flute end mills ideal for thin-walled structures and components prone to deformation.
This geometry is particularly useful in titanium medical implants and aerospace brackets, where stability and dimensional accuracy are critical.

High-Hardness Carbide Substrate with Heat-Resistant Coating

HRC65-grade fine-grain carbide provides the necessary hardness and strength for cutting titanium.
When paired with specialized high-temperature coatings (e.g., AlTiN, TiAlSiN, or HB series), the tool resists oxidation and built-up edge formation at elevated speeds, extending tool life under aggressive cutting conditions.

Sharp Cutting Edges with Micro-Chamfering to Prevent Edge Failure

Titanium’s tendency to gall and cause edge chipping requires a precise balance of sharpness and edge strength.
Standard 2-flute end mills typically incorporate CNC-ground micro-chamfered edges to enhance edge integrity while maintaining sharpness, minimizing micro-cracking and improving tool longevity in difficult-to-machine alloys.

Stable Clamping with Tight Shank Tolerances for Reduced Runout

  • Shank Tolerance: 0 to +0.003 mm — ensures tight clamping with high-precision holders (HSK, BT, SK), reducing vibration and improving surface finish.

  • Diameter Tolerance: 0 to +0.01 mm — maintains dimensional control and repeatability across production runs, even on titanium alloys with varying work hardening behavior.

  • 2 Flutes vs 4 Flutes High Hard Steel Special End Mill

Q1: Which is better for roughing hardened steel—2-flute or 4-flute end mills?

A1:
For roughing operations in high-hardness steels (HRC55–65), 2-flute end mills are generally preferred due to their larger flute space, which improves chip evacuation and reduces heat buildup.
This is particularly important when machining materials like hardened tool steel (e.g., SKD11, H13, D2), where chips tend to be long and stringy. The open geometry of 2-flute cutters also minimizes cutting forces and prevents chip clogging during deep slotting or pocketing.

Q2: Why choose 4-flute end mills for finishing hardened steels?

A2:
4-flute end mills are ideal for semi-finishing and finishing because they offer more cutting edges, resulting in a smoother surface finish and better dimensional accuracy.
The increased edge count allows for smaller chip loads per tooth and reduces tool deflection—critical when machining hardened steel molds or dies that require tight tolerances and fine finishes (Ra ≤ 0.4 µm).

Q3: Do 2-flute or 4-flute cutters have better chip control in deep cavities?

A3:
2-flute designs are superior for deep cavity milling due to their wider chip channels, which prevent recutting and reduce thermal damage.
4-flute tools, while stronger and more rigid, may struggle in deep slots if chip evacuation is not properly managed. For deep pocketing in high-hard steel, 2-flute tools paired with proper coolant flow or MQL (Minimum Quantity Lubrication) are more effective.

Q4: Which flute count offers better edge strength for hard materials?

A4:
4-flute end mills provide higher edge strength and rigidity, making them more resistant to chipping when finishing hard steel surfaces or engaging in light side milling.
However, for rough or interrupted cutting, 2-flute tools are more forgiving due to their reduced cutting load and better heat dissipation.

Q5: How does tool life compare between 2-flute and 4-flute cutters in high-hardness steel?

A5:
Tool life depends on the application stage:

  • For roughing, 2-flute cutters may last longer due to better chip flow and lower thermal load.

  • For finishing, 4-flute tools typically provide longer life under stable, light cutting conditions due to balanced load distribution across more cutting edges.
    In both cases, a hard substrate (HRC65) combined with heat-resistant coatings (HG or HH coatings) is essential to resist edge wear and thermal cracking.

Feature2-Flute End Mill4-Flute End Mill
Best ForRoughing, slotting, deep cavitiesFinishing, contouring, surface refinement
Chip EvacuationExcellentModerate (requires optimized coolant flow)
Edge StrengthLowerHigher
Surface FinishModerateExcellent
Cutting ForceLower (good for thin walls)Higher (more stable on rigid setups)
Common MaterialsHardened steels (HRC55–65), interrupted cutsMold steel, tool steel finishing

  • 2-Flute vs 4-Flute HRC55 End Mills for Soft Steel Machining

Q1: Which end mill is better for chip evacuation in soft steel?

A1:
2-flute end mills offer superior chip evacuation due to their larger flute volume and wider chip pockets.
This is particularly beneficial when machining soft steels that tend to produce long, ductile chips—such as low-carbon steel or annealed alloy steel—helping to prevent chip re-cutting and tool clogging during deep slotting or plunging.

Q2: How does surface finish compare between 2-flute and 4-flute tools?

A2:
4-flute end mills are generally preferred for operations that demand better surface finish and dimensional accuracy.
With more cutting edges engaging simultaneously, the cutter produces finer chips and maintains a more stable cutting path—ideal for side milling and finishing operations on materials like P20 or mild steel.

Q3: Which one offers better cutting stability on CNC machines?

A3:
4-flute tools offer greater rigidity and less deflection, especially important in side milling, pocket contouring, or when using long-reach tooling.
In contrast, 2-flute tools generate lower cutting forces, which may be more suitable for less rigid setups, small-diameter tools, or when machining thin-walled parts.

Q4: Which tool performs better at high feed rates?

A4:
On softer steels, 4-flute end mills can accommodate higher feed rates because the load is distributed across more cutting edges.
This leads to improved material removal rates (MRR) in stable machining environments, particularly in semi-finishing and finishing passes.

Q5: What are the cost-performance considerations?

A5:

  • 2-Flute HRC55 End Mills are typically more cost-effective for roughing and general-purpose machining of soft steels.

  • 4-Flute HRC55 End Mills offer better value in finishing or when tight tolerances and surface finish are critical.

Choosing the right flute count based on machining stage can improve overall tool life and reduce total cost per part.

Feature2-Flute HRC55 End Mill4-Flute HRC55 End Mill
Best ForRoughing, slotting, chip-heavy operationsFinishing, contour milling, high-feed cutting
Chip EvacuationExcellentModerate
Cutting ForcesLowerHigher, more stable
Surface FinishModerateExcellent
Tool RigidityLowerHigher
Common ApplicationsDeep slots, soft copper/brass, low-carbon steelSide milling, alloy steel finishing, semi-finishing

Related Product Recommendation

Q1: What is the Main Difference Between 2-flute and 4-flute End Mills?
A1: The primary difference lies in the number of cutting edges. A 2-flute end mill has two cutting edges and more chip clearance, making it ideal for slotting and machining softer materials like aluminum. A 4-flute end mill has four cutting edges, providing a higher feed rate and better finish in harder materials like steel.

Q2: When Should I Use a 2-flute End Mill Instead of a 4-flute?
A2: Use a 2-flute end mill when machining non-ferrous materials such as aluminum, brass, or plastics. The larger flute space helps evacuate chips more effectively, reducing the chance of chip packing and improving surface finish at higher speeds.

Q3: Are 4-flute End Mills Better for Finishing?
A3: Yes, 4-flute end mills typically provide a better surface finish due to more cutting edges per revolution. They’re also better suited for harder materials and side milling operations where chip evacuation is less critical.

Q4: Can I Use a 4-flute End Mill for Slotting Operations?
A4: While it’s possible, a 4-flute tool may struggle with chip evacuation during deep slotting, especially in soft or gummy materials. A 2-flute end mill is generally preferred for slotting because it clears chips more easily.

Q5: Does the Number of Flutes Affect Cutting Speed and Feed rate?
A5: Yes. More flutes mean more cutting edges, which can increase feed rates and reduce cycle times. However, this also reduces chip space, so it’s essential to balance flute count with material type and operation type.

Q6: Is Tool Life Affected By Flute Count?
A6: It can be. A 4-flute end mill often wears more evenly because of more cutting edges sharing the load, leading to longer tool life in the right conditions. However, in soft materials or improper chip evacuation, a 2-flute tool may last longer due to reduced heat buildup.

Contact SAMHO

Contact Form Demo

Frequently Asked Questions

A: When choosing a ball nose end mill, factors to consider include the number of flutes, the material the end mill is made of, the end mill’s diameter and length, and whether it has a center-cutting design.

A: A 4-flute ball nose end mill refers to an end mill with four cutting edges or flutes. This design provides improved chip evacuation and better surface finish compared to lower flute count end mills.

A: A 4 flute ball nose end mill offers higher productivity, better surface finish, and is more efficient at removing material compared to lower flute count end mills.

A: A shank ball nose end mill is an end mill with a shank suitable for clamping it into a milling machine. The ball nose end of the cutter allows for smooth contouring and machining of complex surfaces.

A: A stub ball nose end mill has a shorter flute length and is suitable for more shallow cuts, whereas a complete radius ball nose end mill has a longer flute length and is suitable for deeper cuts and contouring.

A: Ball nose end mills are suitable for machining various materials, including metals, plastics, and composites. Solid carbide end mills are especially effective for high-speed machining and long tool life.

A: A solid carbide ball nose end mill is made entirely of carbide, providing excellent durability and wear resistance. Conversely, ball nose cutters with a different material composition may not offer the same level of performance and longevity.

A: Ball nose end mills are commonly used for contouring, 3D profiling, die sinking and machining complex surfaces. They are widely used in industries such as aerospace, automotive, mold and die, and general machining applications.

A: High-quality ball nose end mills feature sharp cutting edges, a smooth and durable coating for wear resistance, and precise radial tolerances to ensure accurate machining and smooth surface finish.

Enquiry SAMHO
Ball Nose End Mill Expert
Ball Nose End Mill Expert
OEM Services

• Precision and Accuracy: The cutting edge is designed to create sharp, clean cuts that result in accurate shapes and sizes.
• Durability and Reliability: Our ball nose end mill is made of high-quality materials that ensure durability and long-lasting use.
• Versatility: Our ball nose end mill is highly versatile and can be used in a variety of applications. Whether you are working with wood, metal, plastics, or other materials, our ball nose end mill is designed to handle it all.
• Efficiency: The cutting edge is designed to create smooth, clean cuts that require minimal finishing, which saves you time and money in the long run.

Get in touch with us

Contact Form Demo
